Vermeer - Compact Stump Cutter | SC30TX Get latest price

Read more...

To contact Vermeer Australia about Vermeer Compact Stump Cutter | SC30TX use Get a quote.

An electronic fuel injection (EFI) engine performs well during cold-weather starts and provides improved fuel economy over comparable carbureted gas engines.

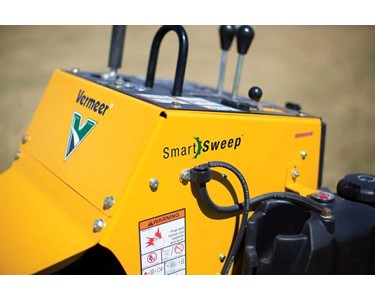

AutoSweep monitors engine speed and automatically adjusts cutter wheel sweep rate.

The hydrostatic ground drive and hydraulic cutter wheel drive eliminates belts and pulleys reducing maintenance time and cost.

Ground disturbance is minimized due to long tracks which provide lower ground pressure and improved stability.

See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

General Dimensions and Weights

• Length: 94 inches / 238.8 cm
• Width: 35 inches / 88.9 cm
• Height: 49 inches / 124.5 cm
• Weight: 1550 lbs / 703.1 kg

Engine

• Oil Filter: Spin-on
• Recommended Oil: Kohler oil or API CH4/SJ
• Oil Volume with Filter: 2 qt / 1.9 L
• Maximum Angle of Continuous Operation: 25 deg
• Cooling Medium: Air/oil

Cutterwheel System

• Cutterwheel Diameter without Teeth: 16 inches / 40.6 cm
• Cutterwheel Thickness: 0.5  inch / 1.3 cm
• Cutterwheel Speed: 1110 rpm
• Cutterwheel Straight Line Dimension: 35.5 inches / 90.2 cm
• Cutterwheel Cut Above Ground: 25 inches / 63.5 cm
• Cutterwheel Cut Below Ground: 12 inches / 30.5 cm
• Tooth Description: Yellow Jacket Cutter System
• Number of Teeth: 16
• Number of Indexes: 2
• Number of Pockets: 16
• Reversible Pockets: Yes
• Cutterwheel Guard: Yes
• Chip Containment: 2.2 cu ft / .1 cu m
• Cutterwheel Drive Components
• Tank capacity: 9 gal / 34.1 L
• Recommended Oil Type: ISO 68
• System Type: Open loop
• Filtration Method: Inline return filter
• Pump Flow at Maximum RPM: 16 gpm / 60.6 L/min
• System relief pressure: 2750 psi / 189.6 bar
• Flow Control: Autosweep (option)
• Directional Control: Standard
• Oil Cooler: Yes. Fan-cooled
• Electrical System

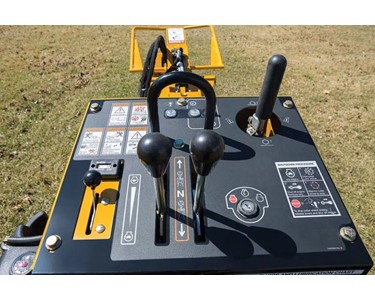

• Control Station Description: Fixed-rear

Track Drive System

• Track Width – Retracted: 35 inches (88.9 cm)
• Track Width – Extended: 35 inches (88.9 cm)
• Track Length on Ground: 31.4 inches (79.7 cm)
• Type of Idler: Cast
• Number of Idlers: 5
• Track Drive Pump Type: Hydrostatic
• System Relief Pressure: 2900 psi (200 bar)
• Pump Flow at Maximum RPM: 11.4 gpm (43.1 L/min)
• Track Drive Motor Type: Geroter
• Track Brake Type: Hydrostatic
• High Speed Travel: 3.2 mph / 5.1 km/h
• Ground Bearing Pressure – Soft Ground: 3.4 psi / 23.4 kPa
