Timber Stacking Palletising Robot

Supplier: Automation Solutions Australia

Timber Stacking Palletising Robot

Save heavy lifting and risk of injury with a Fanuc robot.

Receive 1-3 days from order

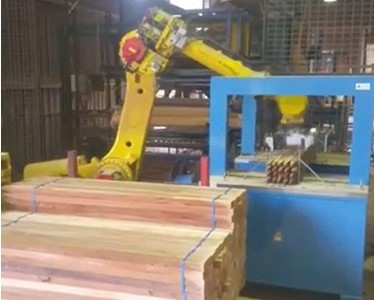

Wanting to meet expected future growth, a robot packing and stacking solution was sourced to handle the output of their staking machine.

Implementing a robot into production also eliminates the numerous OHS risks associated with the task.

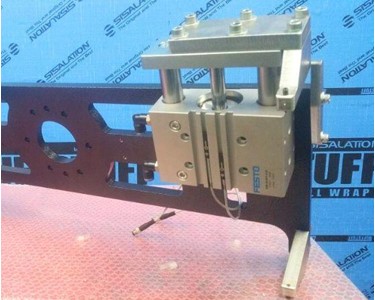

The robotic timber handling system has been designed to accommodate various sized timber products that go through the line, and utilises a heavy duty robotic timber gripper.

The robot palletiser operates with no external PLC, making a very simple low cost implementation with high ROI for the owners at Malmsbury Timber Supplies.

Baz knocked up the safety fencing, and took care of strapper and pallet locating.

The Fanuc R2000iB/165F robot is perfect for palletizing applications due to its large working envelope, high payload, and high speed.

If you are also looking for an intelligent cost effective automated solution to palletise or stack timber products, then Automation Solutions has a solution for you.

Featuring a huge 210 kg payload, this model is ideally suited to any number of heavy handling jobs on almost any application. With numerous mounting options available to make best use of space and create an optimal work envelope, it makes an excellent general purpose robot.

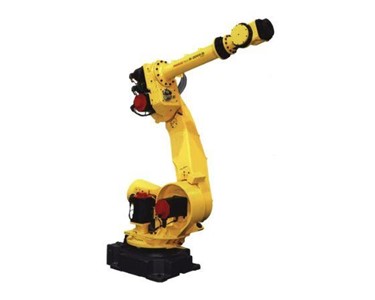

The R-2000iB/210F is a six-axis, electric servo-driven robot designed for a wide variety of manufacturing processes.

Ideal for heavier packing and palletising operations, this 6 axis model provides the directional versatility required to increase throughput on a wide variety of manufacturing and palletising system processes. Capable of handling payloads up to 210kg, it is also fast and delivers excellent cycle times on handling applications.

Supported remotely from Melbourne.

Robot Systems Australia

SPECIFICATIONS

Axes: 6
Payload: 210kg
Reach: 2655mm
Repeatability: ±0.3mm
Robot Mass: 1150kg

Robot Motion Speed

J1 95 °/s
J2 90 °/s
J3 95 °/s
J4 120 °/s
J5 120 °/s
J6 190 °/s

Robot Motion Range

J1 360°
J2 135°
J3 362°
J4 720°
J5 250°
J6 720°
