Palletising Machine Tending Robot Price Guide: $125,000 Get latest price

With numerous mounting options available to make best use of space and create an optimal work envelope, it makes an excellent general purpose robot.

The R-2000iB/210F is a six-axis, electric servo-driven robot designed for a wide variety of manufacturing processes.

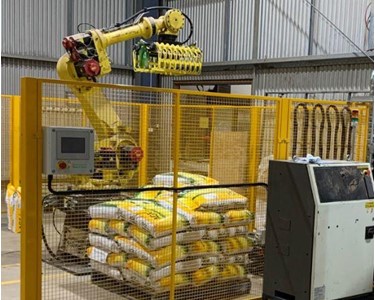

Ideal for heavier packing and palletising operations, this 6 axis model provides the directional versatility required to increase throughput on a wide variety of manufacturing and palletising system processes. Capable of handling payloads up to 210kg, it is also fast and delivers excellent cycle times on handling applications.

Supported remotely from Melbourne.

Specifications

• Axes: 6
• Payload: 210kg
• Reach: 2655mm
• Repeatability: ±0.3mm
• Robot Mass: 1150kg

Robot Motion Speed

• J1 95 °/s
• J2 90 °/s
• J3 95 °/s
• J4 120 °/s
• J5 120 °/s
• J6 190 °/s

Robot Motion Range

• J1 360°
• J2 135°
• J3 362°
• J4 720°
• J5 250°
• J6 720°

To contact Automation Solutions Australia about Palletising Machine Tending Robot use Get a quote.
