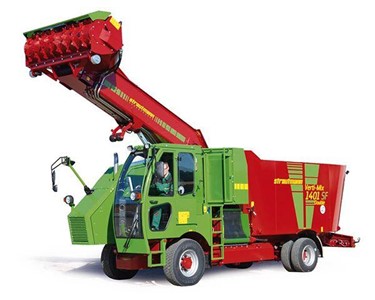

Strautmann - Verti-Mix Double Auger Self-Propelled Mixer 13,380Kg Get latest price

Read more...

To contact Inlon about Strautmann Verti-Mix Double Auger Self-Propelled Mixer 13,380Kg use Get a quote.

Features:

- The full-length chassis is fitted with parabolic suspension together with swivelling axle-rack for continuous 4-wheel contact with the ground

- Large hydraulic drum brakes are fitted front and rear

- 4-wheel drive

- Simple construction, minimal wear and low maintenance

- 20mm of base plate from ST 52-3 for long life

- 8mm thick container wall from ST 52-3 steel for long life

- 16mm thick augers from ST 52-3 steel for long life

- Air-conditioned

- Radio

- Fully adjustable seat

- 2m chopping unit cuts the fodder and rapidly transports it into mixing container via the 600mm wide elevator

- Spiral arrangement head guarantees extremely high loading capacity with minimal impact on the fodder structure

- Mineral feed funnel on conveyor

- Augers fitted with Vario vertical mixing augers for quick and exact mixing of fodder in all parts of the mixing container with less power requirement

- Additional scraper on auger for even and faster emptying

- Stainless steel wear strips

- Sabre shaped knives on the auger

- Adjustable counter cutters and knife position makes processing of whole round or square bales more effective

- Mixing overflow ring

- Front cross-conveyor with side shift and left or right-side feed-out

- Multi-function joystick controls all operating functions

- 10.4” touch screen displays all functions and status information

- ICS (integrated communication system) this terminal can display 3 systems (weighing device, machine info terminal and cameras)

- Integrated fault diagnostic system support

- Remote maintenance via modem

- Programmable weighing scales (without or with data transfer)

- Powered by a 6-cylinder John Deere motor turbocharged and intercooler

1374kW (178hp)

- Clean-Fix radiator ensures optimum performance of the cooling system when working with very dry and dusty fodder

- 4 Wheel hydrostatic drive (40km road speed)

N.B. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.
