Farmliner - Rinieri CRV Vision 2 Double Sided Trimmer/Pruner 500-550Kg Get latest price

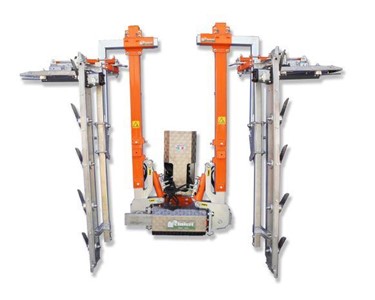

With independent lift adjustment of the two cutting bars, the CRV-Vision 2 will perfectly match the needs of plants situated on slope sides making it ideal for pruning and trimming vineyards. Italian made by Rinieri company; a specialist pruner manufacturer.

- Left and right vertical cutter bars each with a topping cutter bar is powered by hydraulic motors.

- Two vertical posts create clear central vision of the vineyard row for the operator.

- Electro-hydraulic valve block controls all hydraulic functions with 7+1 function joystick in the cabin.

- From a single joystick, control the 7 cylinder functions and the on and off of the cutterbars.

- Independently raise / lower each cutterbar 60cm by hydraulic cylinder controlled from joystick.

- Independently angle each vertical cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.

- Independently angle each topping cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.

- Hydraulic side shift entire trimmer 25cm by hydraulic cylinder controlled from joystick.

- Additional manual side shift of 20cm.

- Hydraulically remove trimmer from the tractor front hitch and put onto the parking stand.

- Cutterbar hydraulic motors have over pressure protection

N.B. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.

To contact Inlon about Farmliner Rinieri CRV Vision 2 Double Sided Trimmer/Pruner 500-550Kg use Get a quote.

With independent lift adjustment of the two cutting bars, the CRV-Vision 2 will perfectly match the needs of plants situated on slope sides making it ideal for pruning and trimming vineyards. Italian made by Rinieri company; a specialist pruner manufacturer.

- Left and right vertical cutter bars each with a topping cutter bar is powered by hydraulic motors.

- Two vertical posts create clear central vision of the vineyard row for the operator.

- Electro-hydraulic valve block controls all hydraulic functions with 7+1 function joystick in the cabin.

- From a single joystick, control the 7 cylinder functions and the on and off of the cutterbars.

- Independently raise / lower each cutterbar 60cm by hydraulic cylinder controlled from joystick.

- Independently angle each vertical cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.

- Independently angle each topping cutterbar +/- 15 degrees by hydraulic cylinder controlled from joystick.

- Hydraulic side shift entire trimmer 25cm by hydraulic cylinder controlled from joystick.

- Additional manual side shift of 20cm.

- Hydraulically remove trimmer from the tractor front hitch and put onto the parking stand.

- Cutterbar hydraulic motors have over pressure protection

N.B. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.
