Overview

The Radiodetection RD8200SG 10-Watt Cable Locating Kit is the ultimate precision tool for professional utility locating contractors, surveyors, and infrastructure specialists. This high-performance kit is engineered for fast, accurate detection of underground cables, pipes, and buried infrastructure—empowering users to work smarter, safer, and faster. With class-leading GPS and automatic usage logging, it is a top-tier choice for organisations demanding traceable, verifiable and efficient fieldwork.

Key Features

? Integrated Survey-Grade GNSS (SG) GPS System

The RD8200SG features a built-in survey-grade GNSS receiver, delivering real-time location data with centimetre-level accuracy. This eliminates the need for a separate GPS unit and ensures precise utility mapping and data capture for asset management and GIS integration. The integrated antenna supports GPS, GLONASS and Galileo systems and real-time kinematics (RTK) technology delivers sub-inch positional accuracy - crucual for detailed utility mapping.

? 21 Frequencies for Locating a Wider Range of Services

The highest number of frequencies from 98Hz to 200kHZ as well as the ability to choose an additional 5 custom frequencies and 4 sonde frequencies makes the RD8200SG the most versatile locator in the Radiodetection range. Even complex locates are easier to accomplish in less time and with less effort.

? 10-Watt Output Transmitter for Long-Distance Locating

Equipped with the highest power output 10-watt transmitter, this kit is ideal for pushing signal down the longest and deepest utility runs and through high-resistance cables or ducts. It ensures strong signal induction and signal clarity, even in noisy or complex underground environments.

? TruDepth™ & Current Direction™ Technologies

Radiodetection’s TruDepth™ gives automatic depth readouts when the locator is correctly oriented over the target, reducing guesswork and error. Meanwhile, Current Direction™ technology helps accurately identify and follow a single utility among multiple parallel lines—especially in congested urban areas.

? Automatic Usage Logging & Bluetooth Connectivity

Track every locate with the automatic usage-logging feature, which records time, location, operator and locate data. Using Bluetooth, users can sync with Radiodetection's RD Manager™ or other GIS and cloud-based asset management systems for seamless reporting and accountability.

? iLOC™ Remote Control

With iLOC™, the RD8200SG allows remote control of the transmitter (TX-10B only) from up to 450 metres away, eliminating unnecessary trips between the transmitter and receiver and improving onsite efficiency.

? Striking Visual Display with Intuitive Interface

The unit’s bright, high-contrast screen and simple user interface provide quick visual feedback on line position, depth, current flow, GPS status and more. With minimal training, new users can operate the system with confidence and accuracy.

Technical Specifications

Model Radiodetection RD8200SG

Transmitter Output Power 10 Watts (Bluetooth iLOC enabled)

GPS Type Survey-Grade GNSS (built-in)

Signal Frequencies 21 active locate, 4 sonde & 5 custom frequencies

Depth Measurement Up to 6m (dependent on conditions)

Display High-visibility backlit LCD

Data Logging Internal memory with Bluetooth export

Battery Life Up to 30 hrs (locator); 20 hrs (transmitter)

IP Rating IP65 / IP54 (locator/transmitter)

Weight Approx. 2.4kg (locator)

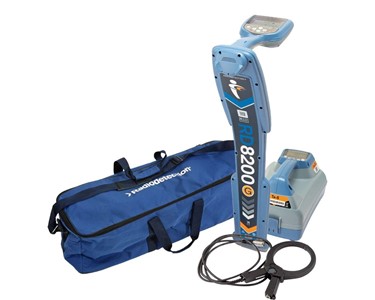

Kit Inclusions

• Radiodetection RD8200SG Locator (with integrated GPS)
• TX-10 Transmitter (10-watt)
• Direct connection leads and ground stake
• Induction clamp (100mm standard)
• Rechargeable battery packs + charger
• Carrying Bag
• Quick start guide and user manual

Applications

• Utility Detection: Water, gas, telecom, electrical
• Civil Engineering Projects: Pre-excavation surveys and utility clearance
• Municipal Maintenance: Roadworks, pipe upgrades, and fault tracing
• Construction Sites: Avoid damage to underground infrastructure
• GIS and Asset Mapping: High-accuracy location logging for mapping platforms

Why Choose the Radiodetection RD8200SG?

1. Maximum Locating Precision – With high-output power, cutting-edge current direction and depth technologies, and built-in GPS.
2. Survey-Grade Mapping – Ideal for companies that require GIS integration and digital data records for audits, compliance and reports.
3. Ergonomic and Rugged – Built for daily use in harsh conditions, with an IP-rated enclosure and lightweight, balanced design.
4. Operational Efficiency – Save time onsite with remote transmitter control, intuitive display, and Bluetooth data transfer.
5. Trusted Global Brand – Radiodetection is a world leader in cable and pipe locating technology, trusted by industry professionals for reliability and innovation.

Buy the RD8200SG Cable Locating Kit Today

If your work depends on accurate, reliable, and documented underground utility detection, the Radiodetection RD8200SG 10-Watt Cable Locating Kit is the premium solution. Available now at Testrix Systems, Australia’s trusted supplier of advanced diagnostic and inspection tools.
