Radiodetection - Precision Cable & Pipe Locator | RD8200 Get latest price

Read more...

To contact Testrix about Radiodetection Precision Cable & Pipe Locator | RD8200 use Get a quote.

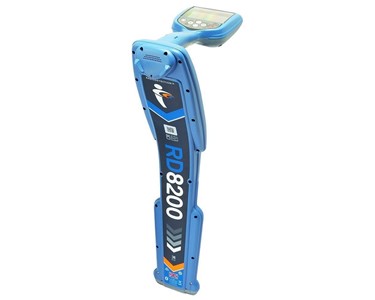

which is designed and built in the UK and offers the most advanced features available in the precision ranges of Radiodetection underground locators. Aimed at professional users who need to locate buried cables, pipes and other infrastructure quickly, and accurately, the RD8200 offers a system which uses a diamond cut precision antenna system to deliver fast and precise results in the field.

Compare the full Radiodetection locator range including the MRX, RD7200 and RD8200.

With 22 active locate frequencies, and a range of other features, including 5 passive locate modes, strike alert and digital signal processing for class leading sensitivity, the RD8200 is an a high end, no compromise locator designed for professional use in locating underground power cables, telecommunication network cables and buried pipes. In ever increasingly congested infrastructure, it is imperative for an underground utilities locator to keep operators safe, and also to provide both reliable and accurate results.

The RD8200 has a number of features, which have been improved over previous versions of Radiodetection's precision locator range and now has various performance enhancements including:

Ease of setup and use - The RD8200 is designed to be an out of the box solution, with a simple and familiar interface. The new display is readable even in sunlight, and a new high performance audio system also adds vibration alerts for use even in the noisiest environments.

Digital Signal Processing - The new RD8200 offers enhanced processing of locate signals for sensitive and accurate results, which also have enhanced reliability, an important feature in highly congested infrastructure.

Custom Frequencies - Up to 5 additional frequencies can be programmed into your locator to match it to the signals found on your target networks.

Dual Bluetooth Connectivity - Ready for a Connected World - The RD8200 locator provides a dual Bluetooth system, which combines long range iLOC functionality and low power connectivity to deliver a system ready to connect to cloud based data solutions.

Power Filters™ - Works where other locators won't - A single key press enables the use of the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

Key Features:

• 22 active locate frequencies
• 5 passive locate modes
• 4 sonde frequencies for best in class versatility - locate non-metallic pipes and sewer camera heads
• In built power filters for difficult power cable locates
• Current Direction (when used with a 10-Watt transmitter) helps to identify single cables in congested networks
• Dual Bluetooth functionality for long range iLOC (connection of locator and transmitter)
• Depth in passive power mode and all active modes
• On screen compass in active modes helps to confirm utility direction
• Strike Alert warns the user of shallow power cables
• Various locate modes including Peak+ for fast location and confirmation of signal distortion
• Swing warning system warns the user of excessive locator swing to improve accuracy
• Digital signal processing increases accuracy and reliability of difficult locates
• Improved display is visible even in bright sunlight
• Both lightweight and ergonomic for comfortable, extended use on site
• New vibration alert reduces the chance of missed warnings
• Built in dynamic overload protection ignores electrical interference for locating in difficult environments
• Fault find mode allows for locating cable sheath faults underground to within 100mm using an optional A-Frame
• TruDepth for reliable depth measurements
• On screen signal current measurement for accurate following of the locate signal
• Improved sensitivity for better response on difficult locates

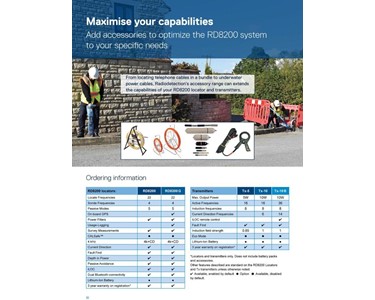

• The RD8200 is available as a full kit with different transmitter options and accessories. Please see our Cable Locator Kits for more information.

The RD8200G also offers internal GPS and logging functionality for even more versatility.
