Overview

The Radiodetection RD8200SG 5-Watt Cable Locating Kit is the ultimate precision tool for professional utility locating contractors, surveyors, and infrastructure specialists. This high-performance kit is engineered for fast, accurate detection of underground cables, pipes, and buried infrastructure—empowering users to work smarter, safer, and faster. With class-leading GPS and automatic usage logging, it is a top-tier choice for organisations demanding traceable, verifiable, and efficient fieldwork.

Key Features

Integrated Survey-Grade GNSS (SG) GPS System

The RD8200SG features a built-in survey-grade GNSS receiver, delivering real-time location data with centimetre-level accuracy. This eliminates the need for a separate GPS unit and ensures precise utility mapping and data capture for asset management and GIS integration.

21 Frequencies for Versatile Locating

Covers 98Hz–200kHz, plus 4 sonde frequencies and 5 custom frequencies. This makes the RD8200SG the most versatile locator in the Radiodetection range, enabling easier completion of complex locates.

5-Watt Output Transmitter

Equipped with a powerful 5-watt transmitter, this kit is designed for pushing signals down long utility runs and through high-resistance cables or ducts. It delivers strong signal induction and clarity, even in noisy underground environments.

TruDepth™ & Current Direction™ Technologies

TruDepth™ provides automatic depth readouts when the locator is properly oriented, reducing guesswork.

Current Direction™ helps accurately identify and follow a single utility among multiple parallel lines, essential in congested urban areas.

Automatic Usage Logging & Bluetooth Connectivity

Tracks time, location, operator, and locate data. With Bluetooth connectivity, data can sync directly to Radiodetection’s RD Manager™ or GIS/cloud-based asset systems for seamless reporting and compliance.

iLOC™ Remote Control

Allows remote control of the transmitter (requires TX-10B) from up to 450 metres away, minimising unnecessary movement between transmitter and receiver.

High-Visibility Display

Bright, high-contrast LCD with an intuitive interface provides quick feedback on line position, depth, current flow, GPS status, and more. Designed for confident operation, even with minimal training.

Technical Specifications

Feature Details

Model Radiodetection RD8200SG

Transmitter Output Power 5 Watts

GPS Type Survey-Grade GNSS (built-in)

Signal Frequencies 21 active locate, 4 sonde & 5 custom frequencies

Depth Measurement Up to 6m (dependent on conditions)

Display High-visibility backlit LCD

Data Logging Internal memory with Bluetooth export

Battery Life Up to 30 hrs (locator); 20 hrs (transmitter)

IP Rating IP65 / IP54 (locator/transmitter)

Weight Approx. 2.4kg (locator)

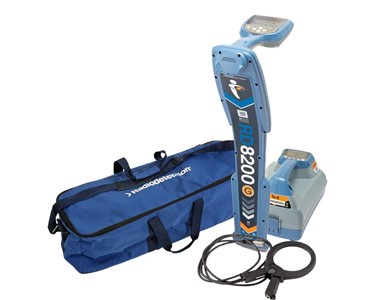

Kit Inclusions

• Radiodetection RD8200SG Locator (with integrated GPS)
• TX-5 Transmitter (5-watt)
• Direct connection leads and ground stake
• 100mm Induction Clamp (standard)
• Rechargeable battery packs + charger
• Carrying bag
• Quick start guide and user manual

Applications

• Utility Detection: Water, gas, telecom, electrical
• Civil Engineering: Pre-excavation surveys and clearance
• Municipal Maintenance: Roadworks, pipe upgrades, fault tracing
• Construction: Prevent infrastructure damage during digging
• GIS & Asset Mapping: High-accuracy data capture for mapping platforms

Why Choose the Radiodetection RD8200SG?

1. Maximum Locating Precision – High-output power, advanced depth and direction technologies, and built-in GPS.
2. Survey-Grade Mapping – Ideal for GIS integration, compliance, and audits.
3. Ergonomic and Rugged – Lightweight, IP-rated design for tough conditions.
4. Operational Efficiency – Remote transmitter control, Bluetooth data transfer, intuitive interface.
5. Trusted Brand – Radiodetection is a global leader in cable and pipe locating technology.

Buy the RD8200SG Cable Locating Kit Today

If your work depends on accurate, reliable, and documented underground utility detection, the Radiodetection RD8200SG 5-Watt Cable Locating Kit is the premium solution.

Available now at Testrix Systems – Australia’s trusted supplier of advanced diagnostic and inspection tools.
