Pit Master Led Lightning Tower 3600W | ...

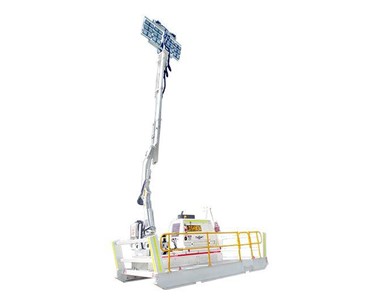

Pit Master Led Lightning Tower 3600W | 14hkp3000-LDS

Supplier: Southern Cross Group

The Light Duty LED Skid Lighting Tower has been designed to deliver the most powerful lighting, low maintenance and cost saving solution to the mining industry.

Receive 1-3 days from order

With built-in auto start/stop, hydraulic boom and light skid base, this unit can be positioned in most mine site areas. The modular engine and hydraulic replacement system has been designed to minimise maintenance time, ensuring that possible production loss is kept to a minimum.

General Features

12 x Heavy Duty Lights with 630,000 Lumen Output
Over 50-70% Reduction in Fuel Consumption
Mine Spec’d as Standard
Extra Low Voltage (Electrocution Risk Eliminated)
Immediate Light Start Up
Reduction in Running & Maintenance Costs
394hrs Operational Duration (full tank)
30,000 Hour Light Life
500 Hour Service Intervals (selected models)
Powered by Kubota D1106 engine

Technical Data

Lights	12 x Pit Master Heavy Duty PM210-48V
Light Output	630,000 Lumens (3600W)
Tower Voltage	48V DC Extra Low Voltage
Fuel Tank Capacity	12 x Pit Master Heavy Duty PM210-48V
Operational Duration (Full Tank)	394hrs

Dimensions/ Measurements

Height	14,640 mm
Length	6,030 mm
Width	2,920 mm
Mast Extended Height	14.6m
Weight (Wet)	8,000 kg (17,636 lbs)

To contact Southern Cross Group about Pit Master Led Lightning Tower 3600W | 14hkp3000-LDS use Get a quote.

General Features

12 x Heavy Duty Lights with 630,000 Lumen Output
Over 50-70% Reduction in Fuel Consumption
Mine Spec’d as Standard
Extra Low Voltage (Electrocution Risk Eliminated)
Immediate Light Start Up
Reduction in Running & Maintenance Costs
394hrs Operational Duration (full tank)
30,000 Hour Light Life
500 Hour Service Intervals (selected models)
Powered by Kubota D1106 engine

Technical Data

Lights	12 x Pit Master Heavy Duty PM210-48V
Light Output	630,000 Lumens (3600W)
Tower Voltage	48V DC Extra Low Voltage
Fuel Tank Capacity	12 x Pit Master Heavy Duty PM210-48V
Operational Duration (Full Tank)	394hrs

Dimensions/ Measurements

Height	14,640 mm
Length	6,030 mm
Width	2,920 mm
Mast Extended Height	14.6m
Weight (Wet)	8,000 kg (17,636 lbs)

Read less...

To contact Southern Cross Group about Pit Master Led Lightning Tower 3600W | 14hkp3000-LDS use Get a quote.

14HKP3000-LDS Specification Sheet 2025(0.86MB)
