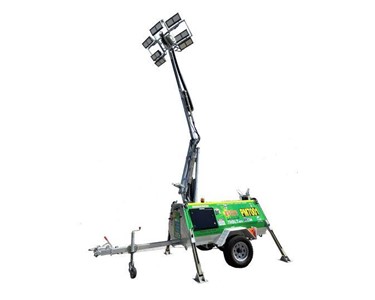

Hybrid Battery Lightning Tower 367,500 ...
Engineered for mine sites, construction zones, and large-scale outdoor applications, this cutting-edge tower is the ultimate solution for reducing emissions while maximizing brightness and durability.
Industry leading Mine Spec LED Hybrid Battery Lighting Tower with world leading Co2 Reduction Technology.
AS-4242:1994 Compliant ADR and VBS01 Compliant Industry leading performance Battery Hybrid
Lighting Specifications
Light Output |
367,500 Lumens |
Lighting Area |
1,135m² at 5 lux |
Light Type |
High-efficiency 300W LED |
Light Intensity Control |
Adjustable brightness from |
Power Consumption |
2,100W at full brightness |
Mine Specifications
Fuel |
Diesel/Battery |
Fuel Capacity |
80 Liters |
Fuel Consumption |
0.57 Liters Per Hour |
Engine Model |
Kubota Z482 – As Standard |
Power Generation |
6.5 kW |
Battery Capacity |
40.3 kWh |
Dimensions
Height |
2,470 mm |
Length |
4,280 mm |
Width |
1,800 mm |
Mast Extended Height |
9.0 m |
Weight (ATM) |
1,999 kg |
Weight (Tare) |
1,700 kg |
To contact Southern Cross Group about Hybrid Battery Lightning Tower 367,500 Lumens | 7HBLT2100 use Get a quote.
Engineered for mine sites, construction zones, and large-scale outdoor applications, this cutting-edge tower is the ultimate solution for reducing emissions while maximizing brightness and durability.
Industry leading Mine Spec LED Hybrid Battery Lighting Tower with world leading Co2 Reduction Technology.
AS-4242:1994 Compliant ADR and VBS01 Compliant Industry leading performance Battery Hybrid
Lighting Specifications
Light Output |
367,500 Lumens |
Lighting Area |
1,135m² at 5 lux |
Light Type |
High-efficiency 300W LED |
Light Intensity Control |
Adjustable brightness from |
Power Consumption |
2,100W at full brightness |
Mine Specifications
Fuel |
Diesel/Battery |
Fuel Capacity |
80 Liters |
Fuel Consumption |
0.57 Liters Per Hour |
Engine Model |
Kubota Z482 – As Standard |
Power Generation |
6.5 kW |
Battery Capacity |
40.3 kWh |
Dimensions
Height |
2,470 mm |
Length |
4,280 mm |
Width |
1,800 mm |
Mast Extended Height |
9.0 m |
Weight (ATM) |
1,999 kg |
Weight (Tare) |
1,700 kg |
To contact Southern Cross Group about Hybrid Battery Lightning Tower 367,500 Lumens | 7HBLT2100 use Get a quote.
