Mega-Tip Rotary Bin Tipper 4.5t Get latest price

Read more...

To contact Wyma Solutions about Mega-Tip Rotary Bin Tipper 4.5t use Get a quote.

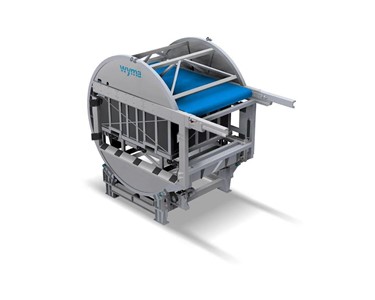

Our Mega-tip Rotary Bin Tipper was custom designed for gentle tipping of very large bins. It can tip carrot bins weighing up to 4.5t and measuring 3700mm wide (approx.).

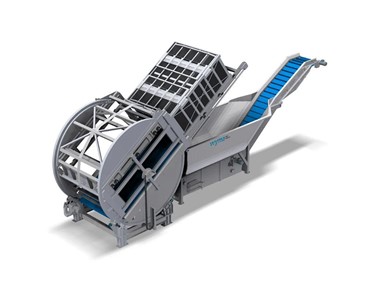

A forklift loads a bin on the inner cradle. Conveyor auto-load is available.

1: Bin is clamped against lid belt (hydraulic or electric clamping).

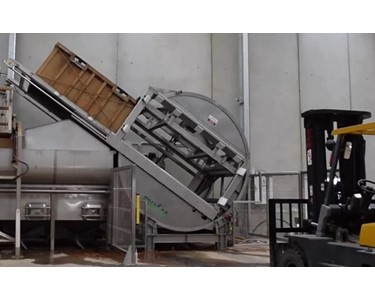

2: Bin is electrically rolled over to unloading position.

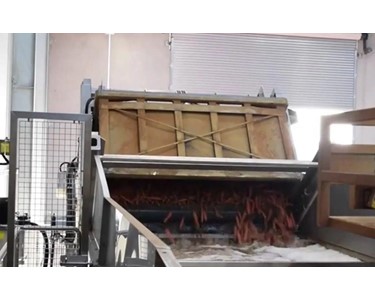

3: Bin is extended up so produce gently exits over the edge of the lid belt. You can pause the tipping motion at any time to control produce un-load rate.

4: Empty bin is returned to the home position ready to be removed by forklift or optional auto-unload system.

Features

• Designed to accommodate 3700mm wide bins

• Fully self-contained unit

• Automated hydraulic bin clamp to secure bin in position before its rotation

• Durable and robust construction in stainless steel to withstand the strains of lifting heavy bins and harsh operating environment

• Conveyor lid movement linked to upward bin motion to prevent produce being jammed and damaged on conveyor

• Proximity sensors to monitor tipping rotation and adjust speed accordingly e.g. Bin Tipper slows down as it approaches the full rotation point

• Movement sensors to automate tipping cycle

• Remote control

• Quick and controllable tipping cycle speed

• Safety guarding available as an option

• Bin lifting speed, linked to discharge rate, controllable

Read less...
