Looking for an excavator that will tear up a job site without taking up too much room?

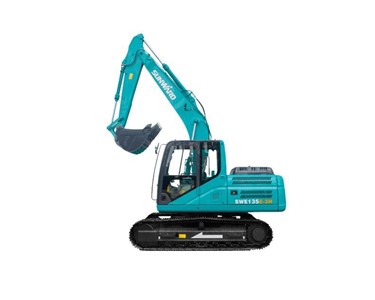

Video for Medium Excavator 90kW | SWE135E

Receive 1-3 days from order

The Sunward SWE 135E medium excavator is the perfect fit for large construction – be it roads or buildings, quarrying, demolition, or forestry. It is designed to be versatile and durable, with a long lifetime. The SWE 135E’s masterful design, Cummins engine, and enhanced hydraulics system deliver smooth operation and high productivity. This top-of-the-line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.

Specifications:

Operating weight:

14,700 kg

Power output:

90 kW

Max. digging depth:

5,530 mm

Width:

2,490 mm

Features & Benefits

POWERFUL & RELIABLE ENGINE

Achieving near-zero emission levels, while delivering 90 kW without compromising power, performance, or fuel economy, that’s the challenge fully met by the compact and powerful Cummins engine. This engine enjoys wide popularity in the market, and so it has an extensive service network.

PREMIUM COMPONENTS

All key components in Sunward excavators are carefully selected, from Cummins engine to hydraulics. Hydraulics are often regarded as the heart of the machine. That’s why Sunward sources exclusively from the highest references in the market. For the SWE 135E, we selected Japanese premium brands KPM for the hydraulic pump and swing motor and KYB to be our main supplier for the Main Control Valve (MCV). Both highly reliable brands are known for their high efficiency and long-life components, designing them specifically to meet the demands of hydraulic excavators.

BUILT TO LAST

The SWE 135E has been designed with durability in mind. The Cummins engine has built a reputation for high durability, even in extreme working conditions. Also, special attention has been put into the key parts of the SWE 135E, such as the boom and the arm, which are designed with an increased sheet material thickness. All supporting elements are made of high-strength, high-ductility, and structural steel die-forged pieces. This has the great advantage of providing elements with both high wear resistance and structural strength. This process delivers a massive increase in reliability operating under heavy-duty work. For example, the swingarm and bucket rod are designed with the reliability standard of 20 000 hours.

Also, the SWE 135E’s heavy-duty implements are delicately annealed, which completely eliminates the residue stress in weld seams and increases the machine’s reliability significantly. After welding, the natural cooling process (with the risk of uneven cooling) is prevented by heating the metal in an isolated chamber to 600 – 800°C and then cooled down slowly (5 – 8 hours), avoiding residual stress and defects. This kind of cooling process is usually not adopted by manufacturers who want to save time and money.

Last but not least, the X chassis has been reinforced, bringing excellent resistance to distortion.

LOW CONSUMPTION

Thanks to the inline 4-cylinder Cummins engine, the SWE 135E uses less fuel, with total fluid efficiency (includes both fuel and Diesel Exhaust Fluid) improved by up to 3 percent, with no compromise on performance (this engine has an even better performance compared to it previous version, delivering 10 percent more power and almost 20 percent more torque across the entire RPM range).

Sunward’s SWE 135E medium excavator also has the highest hydraulic efficiency, which results in low fuel consumption. With the new premium quality main pump from KPM, and the innovative thinking from Sunward, we increased the machine’s displacement by 7%, power by 4%, and volume efficiency by 6% – making the entire excavator more energy efficient).

Finally, thanks to the 3 attachment work modes, operators can enjoy versatility, but also fuel consumption optimisation.

DESIGN FOR VERSATILITY

In the spirit of Sunward’s motto – ‘Innovation Leads to Value’ – the design and engineering of the SWE 135E is focused on generating optimal value for the machine’s owner while offering optimum versatility to the machine’s operator. The SWE 155F can be used in a large variety of working conditions and applications. And thanks to the 3 separate auxiliary lines (2 of them are equipped with a shut-off valve for easy and oil leakage-free installation of attachments), the 3 bucket working modes, and the 3 attachment work modes, an operator needs only a few minutes to fully appreciate the possibilities offered.

EASY TO MAINTAIN

To reduce maintenance time and cost, the covers at the rear and on the side open fully to provide direct access to the service points. With very easy access to the fuel tank and centralised grease fittings, the SWE 135E is as easy to maintain as it is to operate.

SAFE CAB

The high-strength SWE 135E cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments. Despite its compact size from the outside, the SWE 135E offers easy access to the roomy cab, welcoming operators of all sizes. Thanks to the large windows and the well-organised cab, everything is designed to keep operators comfortable and productive as well as safe.

BEST VALUE FOR MONEY

Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 155F’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.

And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
