Compact Excavator 13.4 kW | SWE25UF

Supplier: Onis Equipment Group

Compact Excavator 13.4 kW | SWE25UF

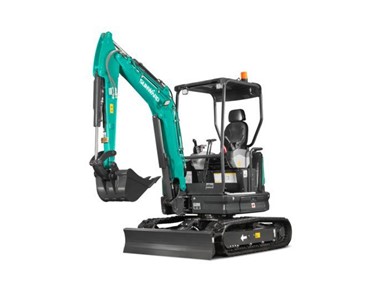

The Sunward SWE 25UF mini excavator is the zero-tail version of the SWE 25F mini excavator.

Video for Compact Excavator 13.4 kW | SWE25UF

Receive 1-3 days from order

Like the SWE 25UF, it benefits from exceptionally good job performance. However, its unique zero-tail compact design makes it the perfect option for tight job sites requiring power. Its weight category makes it very easy to transport.

Specifications:

Operating weight:

1,880 kg

Power output:

13.4 kW

Max. digging depth:

2,206 mm

Width:

990-1,360 mm

Features & Benefits

POWERFUL & RELIABLE ENGINE

We chose the powerful Yanmar 3TNV80F-SPSU engine featuring low fuel consumption, low noise and vibration levels, and high-altitude performance control, ensuring intensive work in a severe environment. This 14.6 kW industrial diesel engine is both EPA Final Tier 4 and EU Stage V compliant, and its compact design means it can fulfill a variety of roles. The Yanmar engine perfectly matches with the power of the hydraulic system, guarantying smooth operation. This engine is the perfect fit for our reliable and versatile Sunward SWE 25UF.

PREMIUM COMPONENTS

All key components in Sunward excavators are carefully selected, from Yanmar engine to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For our Sunward SWE 25UF, we selected Japanese premium brands to be our main suppliers for the hydraulic pump, traveling and swing motor. NACHI and Kayaba pumps and components are efficient, reliable, and space-saving. So, it’s no coincidence that Sunward selected them to contribute to the SWE 25UF’s reliability.

HIGH WORKING RANGE

The SWE 25UF has exceptional digging forces of 24 kN (bucket) and 14 kN (arm), which easily rival the 2.5-ton excavator competitors. And when it comes to its long-reach digging capacity, the SWE 25UF’s boom cylinder design provides a maximum reach of over 4.7 meters (4,775 mm) long.

READY FOR A VARIETY OF APPLICATIONS

A mini-excavator’s versatility starts with how well it is designed for transportation. The SWE 25UF does more than simply align with the EU’s transportation regulations – truly compact (1 500 mm width) and lightweight (2 750 kg), it allows easy, safe, and secure transport. With an automatic slew lock and 4 easily accessed tiedown points on the undercarriage, the machine can be safely transported on a small trailer with up to 3 buckets and a hydraulic breaker. The SWE 25UF can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.

WELL-EQUIPPED FROM THE OUTSET

The Sunward SWE 25UF is very well equipped from the day it leaves the factory:

Double Acting Hydraulic Circuit
Factory-fitted Hydraulic Quick Hitch Lines
Factory-fitted Hammer & Rotation Line
Factory-fitted Case Drain Line
Factory-fitted One hydraulic pilot control with a double contact switch
Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
3 LED work lights as standard: 2 on the front of the cab, 1 on the left side of the boom

EASY TO MAINTAIN

On the SWE 25UF, the service points have been centralised to make it easy to maintain and service. To reduce maintenance time and cost, the cover at the rear provides direct access to the service points. With very easy access to the fuel tank and centralised grease fittings, the SWE 25UF is as easy to maintain as it is to operate.

BEST VALUE FOR MONEY

Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 25UF’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.

And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.

To contact Onis Equipment Group about Compact Excavator 13.4 kW | SWE25UF use Get a quote.
