MatHand Multilift | Material Lift Get latest price

This powerful machine can practically move, lift and turn just about anything. A range of tool attachments and variations are available, which transform the lifter into a customised lifting device. It’s a one-stop-shop for a number of industries.

Constructed from 304-grade stainless steel, it features a high-quality design that is built to last. The device is versatile, safe, operator intuitive and incredibly lightweight. European made, the Multilift features standard components and a huge catalogue of previously delivered solutions. Unlike any product of the market, the Multilift is an excellent choice that makes gripping, lifting and moving goods incredibly easy.

This device is capable of performing various lifting operations simply by exchanging attachments or customising the device to your requirements. Capacities from 80 kg up to 500 kg can be managed, depending on the model selected. Each unit is supplied with battery electric operation and durable stainless steel construction. However, optional hand winch and mild steel powder coated design is available. All devices include safety features to ensure operators are completing manual handling activities ergonomically and free from strain or injury.

Overall Features:

• Choice of either Stainless Steel or Mild Steel Powder Coated construction
• Choice of either battery electric or hand winch lifting operation
• Covers can be removed for easy access and maintenance
• All attachments and grippers can be quickly changed without tools
• High-quality components provide long life and security
• Push button control with battery indicator on spiral cable
• Lifetime warranty on ball screw lift system
• Braked motor and rear castors with foot brakes
• Optionally sealed electrical enclosure for wash down applications
• Choice of stainless or plastic rear cover
• Supplied with automatic battery charger
• Selection of interchangable front wheels and castors

State-of-the-art Multilift operation:

The Multilift features a unique ball screw lifting mechanism. Other similar lifting devices use a chain or wire rope to control the carriage. The strength of the ball screw ensures the device is 100% safe, high in quality and precise to control. The ball screw cannot fail and drop the load thanks to this innovative design. The lift mechanism is completely enclosed for safety – no operator pinch points (protective enclosure removed in image below).





Choose the right Multilift for your application!

Load Capacity	Stainless Steel Battery Electric	Powder Coated Battery Electric	Stainless Steel Hand Winch	Powder Coated Hand Winch
80 kg	ML80-000SS	ML80-000MS	ML80-000SS-W	ML80-000MS-W
150 kg	FA1001-150	FA1002-150	FM150-SS	FM150-MS
300 kg	FA1001-300	FA1002-300	FM300-SS	FM300-MS
500 kg	ML500-SS	ML500-MS	–	–

Multilift 80 kg Specifications:

• Lifts a maximum of 80 kg at 400 mm load centre from mast
• Lift Mechanism – Ball screw with a direct drive motor (self-locking)
• Lift Speed – 100 mm / sec
• Electrics – 24 V Motor Controller with soft start and Battery Status Indicator
• Batteries – Sealed Lead Acid Batteries with Automatic Charger (240 V)

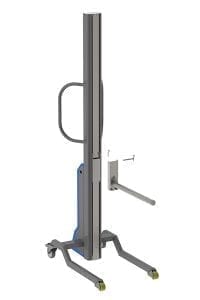

MatHand Multilift 80 kg





Multilift 150 kg Specifications:

• Lifts a maximum of 150 kg at 600 mm load centre from mast
• Lift Mechanism – Ball screw with a direct drive motor
• Lift Speed – 65 mm / sec
• Electrics – 24 V Programmable with diagnostics and Battery Status Indicator
• Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

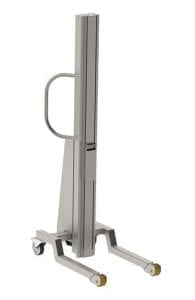

MatHand Multilift 150 kg





Multilift 300 kg Specifications:

• Lifts a maximum of 300 kg at 500 mm load centre from mast
• Lift Mechanism – Ball screw with a direct drive motor
• Lift Speed – 65 mm / sec
• Electrics – 24 V Motor Controller with soft start and Battery Status Indicator
• Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

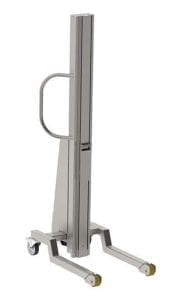

MatHand Multilift 300 kg





Multilift 500 kg Specifications:

• Lifts a maximum of 500 kg at 600 mm load centre from mast
• Lift Mechanism – Ball screw with a direct drive motor
• Lift Speed – 60 mm / sec
• Electrics – 24 V Motor Controller with soft start  and Battery Status Indicator
• Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

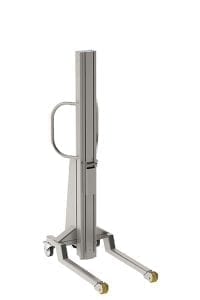

MatHand Multilift 500 kg

Read more...
