HIKMICRO - Thermal Camera IP64 | BX20 ATEX & IECEx

Supplier: NWI Group

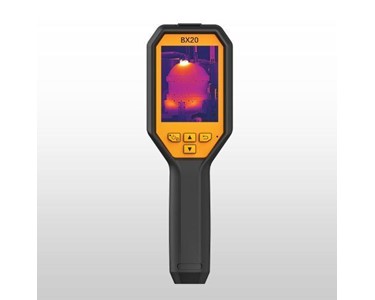

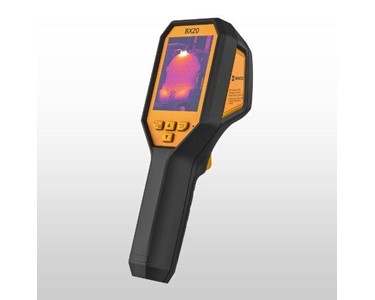

Thermal Camera IP64 | BX20 ATEX & IECEx

Not only the HIKMICRO BX20 intrinsically safe thermal camera has obtained ATEX and IECEx certification.

Receive 1-3 days from order

In addition, HIKMICRO is an audited manufacturer of hazardous location equipment and gets ATEX Quality Assurance Notification (QAN) and IECEx Quality Assurance Report (QAR).

Certified Product and Manufacturer

Not only the HIKMICRO BX20 intrinsically safe thermal camera has obtained ATEX and IECEx certification. In addition, HIKMICRO is an audited manufacturer of hazardous location equipment and gets ATEX Quality Assurance Notification (QAN) and IECEx Quality Assurance Report (QAR).

High Image Quality

Features a high Resolution (256 × 192, 49,152 pixels) and highly sensitive (NETD < 40 mK) VOx IR detector, along with HIKMICRO SuperIR image enhancement algorithms to provide super clear thermal images.

Enhanced Thermal Clarity with SuperIR*

Powered by HIKMICRO SuperIR image enhancement technology, it upscales the resolution of captured thermal images to 320 x 240 (76,800 Pixels). (*SuperIR enables captured thermal images only)

25 Hz Fast Image Frequency

25 Hz fast image frequency delivers smooth video while panning across scenes or viewing moving targets.

Full-screen Precise and Wide Measurement

Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C with a temperature accuracy up to +/-2°C or +/-2% of reading.

Durable and Rechargeable Batteries

Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (10/20/30/40/50/60 minutes) allow the camera up to 6 hours of continuous operation.

Dual-camera Thermal Imager

Built-in IR camera and visual camera give you enhanced details. Thermal, Fusion, PIP, and Visual modes to suit your preferred view.

Specifications:

CategorySpecification

Product Model	BX20
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 μm
Spectral Range	7.5 to 14 μm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	37.2° × 50.0°
Spatial Resolution (IFOV)	3.3 mrad
Focus Mode	Focus Free
Min. Focus Distance	0.3 m (0.98 ft)
SuperIR	Yes, on captured thermal images
Image Display	—
Visual Camera	1600 × 1200 (2 MP)
Display	240 × 320 resolution, 3.2” LCD screen
Image Modes	Thermal / Visual / Fusion / PIP
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
Color Alarm	Above alarm
Measurement and Analysis	—
Object Temperature Range	-20°C to 150°C (-4°F to 302°F) / 100°C to 550°C (212°F to 1022°F)
Accuracy	Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C–35°C and object temperature > 0°C
Measurement Tools	Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots
Level and Span Mode	Auto / Manual
Data Storage and Communication	—
Storage Media	Built-in 16 GB flash memory
Image Storage Capacity	Approx. 90,000 images
USB Interface	USB Type-C
General	—
Battery Type	Rechargeable Li-ion battery
Battery Operating Time	Approx. 6 hours
Battery Charging Time	Approx. 3 hours
Protection Level	IP64
Drop Test Height	2 m (6.56 ft)
Working Temperature Range	-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 380 g (0.84 lb)
Dimension	221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting	UNC ¼”-20
LED Light	Yes
ATEX / IECEx Certificate Type	ATEX: II 3 G Ex ic IIC T6 Gc, II 3 D Ex ic IIIC T85°C DcIECEx: Ex ic IIC T6 Gc, Ex ic IIIC T85°C Dc

To contact NWI Group about HIKMICRO Thermal Camera IP64 | BX20 ATEX & IECEx use Get a quote.

In addition, HIKMICRO is an audited manufacturer of hazardous location equipment and gets ATEX Quality Assurance Notification (QAN) and IECEx Quality Assurance Report (QAR).

Certified Product and Manufacturer

High Image Quality

Enhanced Thermal Clarity with SuperIR*

Powered by HIKMICRO SuperIR image enhancement technology, it upscales the resolution of captured thermal images to 320 x 240 (76,800 Pixels). (*SuperIR enables captured thermal images only)

25 Hz Fast Image Frequency

25 Hz fast image frequency delivers smooth video while panning across scenes or viewing moving targets.

Full-screen Precise and Wide Measurement

Durable and Rechargeable Batteries

Built-in 3350mAh Li-Ion rechargeable battery and thoughtful auto power-off settings (10/20/30/40/50/60 minutes) allow the camera up to 6 hours of continuous operation.

Dual-camera Thermal Imager

Built-in IR camera and visual camera give you enhanced details. Thermal, Fusion, PIP, and Visual modes to suit your preferred view.

Specifications:

CategorySpecification

Product Model	BX20
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 μm
Spectral Range	7.5 to 14 μm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	37.2° × 50.0°
Spatial Resolution (IFOV)	3.3 mrad
Focus Mode	Focus Free
Min. Focus Distance	0.3 m (0.98 ft)
SuperIR	Yes, on captured thermal images
Image Display	—
Visual Camera	1600 × 1200 (2 MP)
Display	240 × 320 resolution, 3.2” LCD screen
Image Modes	Thermal / Visual / Fusion / PIP
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
Color Alarm	Above alarm
Measurement and Analysis	—
Object Temperature Range	-20°C to 150°C (-4°F to 302°F) / 100°C to 550°C (212°F to 1022°F)
Accuracy	Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C–35°C and object temperature > 0°C
Measurement Tools	Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots
Level and Span Mode	Auto / Manual
Data Storage and Communication	—
Storage Media	Built-in 16 GB flash memory
Image Storage Capacity	Approx. 90,000 images
USB Interface	USB Type-C
General	—
Battery Type	Rechargeable Li-ion battery
Battery Operating Time	Approx. 6 hours
Battery Charging Time	Approx. 3 hours
Protection Level	IP64
Drop Test Height	2 m (6.56 ft)
Working Temperature Range	-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 380 g (0.84 lb)
Dimension	221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting	UNC ¼”-20
LED Light	Yes
ATEX / IECEx Certificate Type	ATEX: II 3 G Ex ic IIC T6 Gc, II 3 D Ex ic IIIC T85°C DcIECEx: Ex ic IIC T6 Gc, Ex ic IIIC T85°C Dc

Read less...

To contact NWI Group about HIKMICRO Thermal Camera IP64 | BX20 ATEX & IECEx use Get a quote.

HikMicro-BX20-IECEx-Certificate(0.38MB)

HikMicro-BX20_Flyer_en-US_20240527(1.56MB)

HIKMICRO-BX20_Datasheet_V5.5.50_en-US_20231009(0.97MB)
