HIKMICRO - Compact Thermal Camera IP54 | B20z

Supplier: NWI Group

Compact Thermal Camera IP54 | B20z

Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms.

Receive 1-3 days from order

View it all on a 3.2″ LCD screen with a crisp 640×480 resolution, capturing every detail with its 256×192 thermal resolution.

High Image Quality

Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2″ LCD screen with a crisp 640×480 resolution, capturing every detail with its 256×192 thermal resolution.

Enhanced Thermal Clarity with SuperIR

HIKMICRO’s SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.

* Real-time SuperIR is only available in thermal mode.

Experience the New and Improved Display

The B20S features a high-resolution display of 640×480. With the SuperIR , you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.

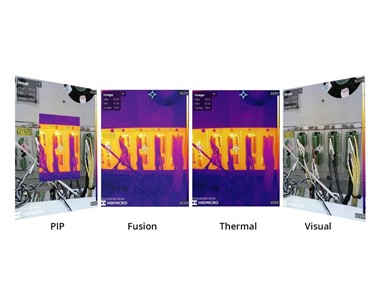

4 Images Modes

Thermal, Fusion, PIP, and Optical modes to suit your preferred view.

Full-screen Precise and Wide Temperature Measurement

The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

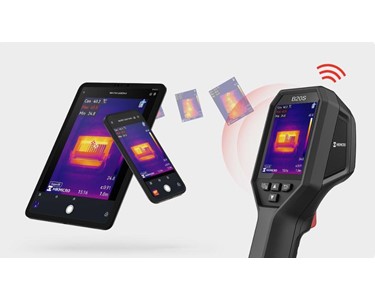

Wi-Fi Connectivity

Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

Optional innovative macro mode

Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

High Temperature Alarm

Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

Fast Image Frequency

Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

HIKMICRO Analyser Software

Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

Specifications:

Category	Parameter	B20S
Product Model	Model	B20S
Infrared Image	IR Resolution	256 × 192 (49,152 pixels)
	NETD	< 40 mK (@ 25 °C, F#=1.0)
	Image Frequency	25 Hz
	Detector Pitch	12 μm
	Spectral Range	7.5 to 14 μm
	Focal Length	3.6 mm
	F-number	F1.0
	Field of View (FOV)	37.2° × 50.0°
	Spatial Resolution (IFOV)	3.3 mrad
	Focus Mode	Focus Free
	SuperIR	Yes, on captured images and live view
	Min. Focus Distance	0.3 m (0.98 ft)
Image Display	Visual Camera	1600 × 1200 (2 MP)
	Display	480 × 640 Resolution, 3.2″ LCD Screen
	Image Modes	Thermal/Visual/Fusion/PIP
	Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
	Color Alarm	Above alarm
Measurement & Analysis	Object Temperature Range	-20°C to 150°C (-4°F to 302°F); 100°C to 550°C (212°F to 1022°F)
	Accuracy	Max. (± 2°C/3.6°F, ± 2%), ambient 15°C–35°C & object > 0°C
	Measurement Tools	Center Spot, Hot Spot, Cold Spot, 3 user-defined spots
	Level and Span Mode	Auto/Manual
	SuperScene	Water Leak, Insulation
	Scene Mode	Insulation Pro, Condensation
Data Storage & Communication	Storage Media	Built-in 16G eMMC (user available storage is less than nominal)
	Image Storage Capacity	Approx. 35,000 images
	Image File Format	Radiometric JPEG
	Wi-Fi	802.11 b/g/n (2.4GHz)
	USB Interface	USB Type-C
General	Battery Type	Rechargeable Li-ion battery
	Battery Operating Time	Approx. 6 hours
	Battery Charging Time	Approx. 3 hours
	Protection Level	IP54
	Drop Test Height	2 m (6.56 ft)
	Working Temperature Range	-10°C to 50°C (14°F to 122°F)
	Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
	Relative Humidity	< 95% non-condensing
	Weight	Approx. 380 g (0.84 lb)
	Dimensions	221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in)
	Tripod Mounting	UNC ¼”-20
	Power Supply	USB-C (5V/2A)
	LED Light	Yes
