GIS - Motorised & Manual Travel Trolleys Get latest price

Read more...

To contact Hasemer Materials Handling about GIS Motorised & Manual Travel Trolleys use Get a quote.

Specifications of this product

• Capacities available from 500 kg to 8,000 kg
• Manual (GHF / GISKB) or motorised (GMF / FU) travel options
• Infinitely adjustable flange width for flexible beam compatibility
• Side plates and load wheels made of durable cast iron or aluminium (model-dependent)
• Ball-bearing load wheels with large diameter for smooth, long-lasting performance
• Integrated fall and climbing protection for maximum operator safety
• Compatible with GIS electric chain hoists and overhead crane systems
• Quiet running options with plastic or stainless steel load wheels
• Available in corrosion-resistant versions (GHFR) for food, pharmaceutical, and chemical environments
• Optional frequency inverter for precise, oscillation-free load positioning (GMF FU series)
• Manual or radio remote control (model-dependent)
• Operating voltages available globally
• Protection class up to IP65 depending on configuration
• Modular counterweight options for motorised trolleys
• Suitable for straight beams and curved travel (with carrier rollers)

Models Available:

• Manual Trolleys:

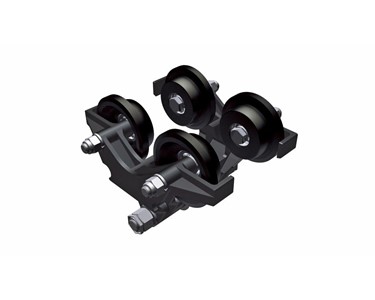

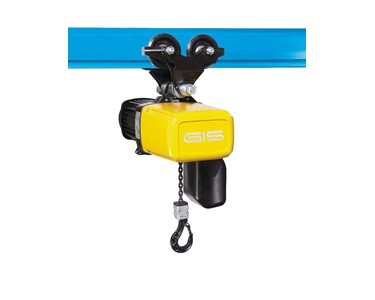

• GHF 500 K – up to 500 kg, lightweight 2.5 kg frame, quiet-running plastic rollers

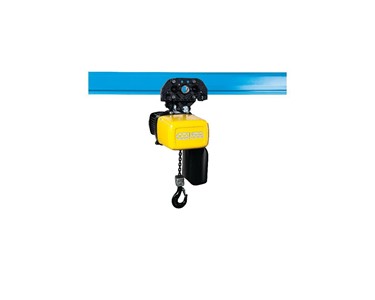

• GHF 1250–6300 – up to 6,300 kg, cast iron construction, ball-bearing load wheels, optional parking brake

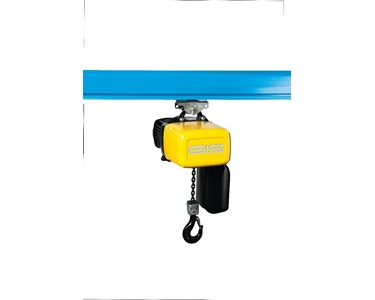

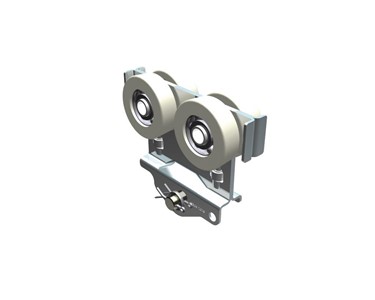

• GISKB Trolleys – up to 800 kg, for GISKB hollow profile systems, very quiet running

• Corrosion-Resistant Models:

• GHFR Series – stainless steel wheels, bolts, cataphoresis-coated plates, ideal for food/pharma industries

• Motorised Trolleys:

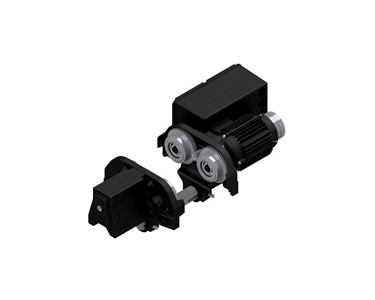

• GMF 1250–6300 – up to 6,300 kg, speeds 12 / 12–4 / 24–6 m/min
• GMF 1250–6300 FU – frequency inverter model, speed 3.6–30 m/min, precise and oscillation-free transport
• SAKB with FU – up to 1,600 kg, electric tug with frequency inverter for GISKB profiles

Features of this product

• Smooth travel and precise load positioning
• Quiet operation with plastic or stainless-steel wheel options
• Higher load capacity (+25%) compared to previous GIS models
• Longer service life thanks to larger-diameter wheels and helical gear components
• Soft start/stop with frequency inverter models
• Low maintenance cast construction and sealed bearings
• Perfect integration with GIS hoists and crane systems
• Curved beam capability with support carrier rollers
• Lightweight manual trolleys available for compact GISKB systems

Applications of this product

• Overhead travelling cranes (single or double girder)
• Underslung cranes and workstation crane systems
• Industrial production lines and assembly environments
• Food and pharmaceutical processing facilities (corrosion-resistant versions)
• Warehousing and logistics facilities
• Mechanical engineering, manufacturing, and maintenance operations
• Integration with GIS electric chain hoists for vertical lifting + horizontal travel

Why choose this product

• Engineered and manufactured in Switzerland
• Designed for maximum safety, reliability, and industrial performance
• Modular options for manual, motorised, or inverter-driven transport
• Wide range of models to suit steel beams, GISKB profiles, or corrosion-sensitive sites
• Proven durability with cast steel components and sealed bearings
• Easy installation, adjustment, and long-term operation
• Supported in Australia by Hasemer with full service, parts, and technical advice
