Ganterud - Precise Levelling Yoke 5t - 20t Get latest price

Read more...

To contact Hasemer Materials Handling about Ganterud Precise Levelling Yoke 5t - 20t use Get a quote.

Specifications of this product

Available Models:

• L5 Pro

• Lifting Capacity: 5 tonnes
• Levelling Capacity: 750 kg
• Ideal for pipes, prefabricated panels, beams and confined workshops

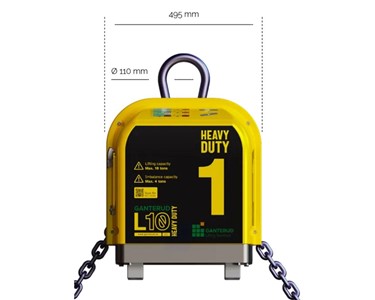

• L10 HD

• Lifting Capacity: up to 10 tonnes
• Levelling Capacity: up to 4 tonnes
• Built for harsh, heavy-duty environments

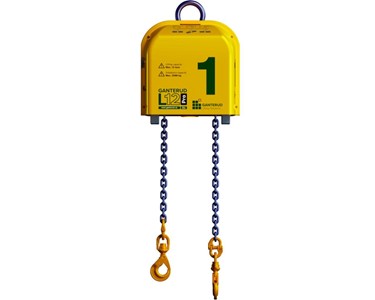

• L12 Pro

• Lifting Capacity: 12 tonnes
• Levelling Capacity: 2.5 tonnes
• Higher stroke for mid-weight modular elements

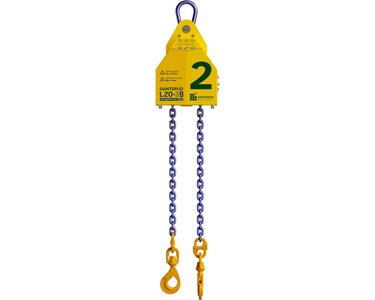

• L20-3 Pro

• Lifting Capacity: 20 tonnes
• Levelling Capacity: 3 tonnes

• Designed for large infrastructure and industrial lifting
• Technical Highlights (Common Across the Range)
• Remote-controlled operation (100 m range)
• Battery-powered, low-maintenance system
• Protection rating: IP65 (device) / IP67 (remote)
• Operating Temperature: –20 °C to +40 °C

Reversible chain stroke:

• L10 HD: up to 1.5 m per hook
• L12 Pro: up to 2 m per hook
• L20-3 Pro: up to 3 m per hook

• Built for industrial reliability with robust steel housing

Features of this product

• Automatic or controlled load levelling
• Safe rotation and handling of unbalanced or awkward loads
• Superior safety—keeps operators at a distance
• Reduces crane waiting time and rigging costs
• Improves lift accuracy and productivity
• Performs reliably in difficult or confined spaces
• Minimal servicing—weekly charging only
• Strong resistance to dust, water and harsh weather
• Ideal for turning, rotating and positioning large elements

Applications of this product

• Ganterud levelling yokes are ideal for:
• Modular and prefabricated concrete lifting
• Steel fabrication and structural engineering
• Rotating and positioning beams, panels and pipe sections
• Crane lifting in tight workshop or yard spaces
• Construction, infrastructure and industrial maintenance
• Heavy machinery installation and positioning
• Utilities, logistics, shipyards and manufacturing

Why choose this product

• Enhanced safety – eliminates risky manual load adjustments
• Ultimate precision – balance and level with the push of a button
• Huge time savings – dramatically reduces crane downtime
• Versatile adaptability – from small prefab units to 20-tonne builds
• Engineered for harsh worksites – IP65/IP67 protection
• Low maintenance – long-life battery and simple cleaning
• Remote control convenience – smooth operation from a safe distance
• Trusted worldwide – proven reliability across Europe, North America and Australia

Read less...

To contact Hasemer Materials Handling about Ganterud Precise Levelling Yoke 5t - 20t use Get a quote.
