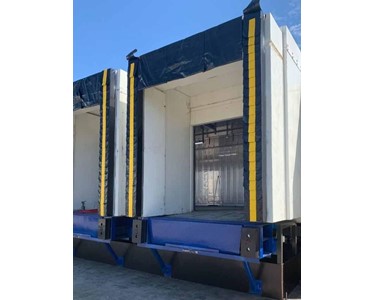

Dock Shelter | S-2000 Compression Seal Get latest price

Read more...

To contact Safetech Pty Ltd about Dock Shelter | S-2000 Compression Seal use Get a quote.

Safetech Compression Seals use the latest technology to provide the most cost-effective and energy-saving solution for a number of different applications. They allow full vehicle access while keeping the elements out. The compression seal allows you to accommodate the widest range of vehicles.

In an effort to produce the highest quality and best performance compression dock seal available we have monitored the performance of not only our own products but those of our competitors. This has resulted in quality and performance that is unsurpassed in the industry.
Safetech Compression Seals are available with the following options:

Features

• Adjustable head curtain for varying trailer heights
• Extra durable XL-100 Super Fabric curtain
• Inflatable header option provides tight seal without impeding trailer access at the top
• Tight sidewall seal
• Internal retention strap system secures fabric to the inside of the side pad profile minimizing the possibility of pad damage
• Includes roll formed galvanized steel side and head pad backing
• Bottom of side pads reinforced to extend seal life

Components

HEAD PAD

180mm thick x 450mm high with a core of heavy-duty polyurethane foam attached to a plywood packing.

SIDE PAD

180mm thick x 300mm wide with a core of heavy-duty polyurethane foam attached to a plywood backing with eyelets in the base to allow for air and water to escape.

GUIDE STRIPS

Side pads have a 100mm wide yellow guide strip the full length of the side pad to assist reversing vehicles.

ARMOUR PLEATS

Can be fitted to side pads at 100mm intervals to provide protection against moving vehicles. Armour Pleats are fitted with a unique PVC mesh material welded to the back of the Amour Pleat to reduce friction and premature damage this will extend the working life of the seal.

DOOR SEAL MATERIAL

A 700gsm reinforced PVC vinyl in one-piece welded construction enwrapping core.

MOUNTING ANGLES

Galvanised mounting angles are supplied to fit seals to the building improving aesthetics and eliminating corrosion.
