Ditch Witch - Directional Drill | JT10 Get latest price

Specifications

• Power (hp) 66
• Pullback (lbs) 10,000
• Torque (ft/lbs) 1,100
• Spindle rpm 186
• Carriage speed (m/min) 40
• Weight (kg) 3,350
• Mud pressure (psi) 750
• Mud flow (gpm) 16
• Pipe length (m) 1.8
• Pipe capacity (m) 90

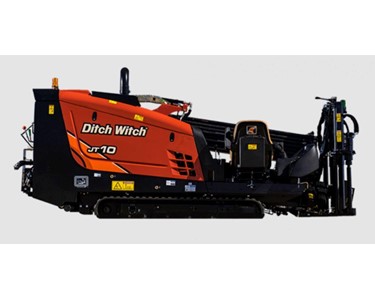

The new Ditch Witch JT10 horizontal directional drill (HDD) boasts unbeatable power in a compact, yet sturdy frame for easy transportation and improved maneuverability on tight jobsites. Powered by a Tier 4, 66-hp (49-kW) Deutz® diesel engine, the machine is the most powerful drill in its class. It offers 10,000 lbs (44 kN) of pullback force, providing the advanced strength and power of bigger drills, combined with the simplicity and easy operation of a compact machine. An innovative design incorporates advanced features of larger drill machines, including a heavy-duty anchor system, open-top vise wrenches and integrated remote display. A redesigned operator’s station smooths operation with a single joystick and is equipped with an ergonomic traversing seat for increased jobsite visibility and comfortability on the job.

To contact Construction Equipment Australia (CEA) about Ditch Witch Directional Drill | JT10 use Get a quote.

Specifications

• Power (hp) 66
• Pullback (lbs) 10,000
• Torque (ft/lbs) 1,100
• Spindle rpm 186
• Carriage speed (m/min) 40
• Weight (kg) 3,350
• Mud pressure (psi) 750
• Mud flow (gpm) 16
• Pipe length (m) 1.8
• Pipe capacity (m) 90

The new Ditch Witch JT10 horizontal directional drill (HDD) boasts unbeatable power in a compact, yet sturdy frame for easy transportation and improved maneuverability on tight jobsites. Powered by a Tier 4, 66-hp (49-kW) Deutz® diesel engine, the machine is the most powerful drill in its class. It offers 10,000 lbs (44 kN) of pullback force, providing the advanced strength and power of bigger drills, combined with the simplicity and easy operation of a compact machine. An innovative design incorporates advanced features of larger drill machines, including a heavy-duty anchor system, open-top vise wrenches and integrated remote display. A redesigned operator’s station smooths operation with a single joystick and is equipped with an ergonomic traversing seat for increased jobsite visibility and comfortability on the job.
