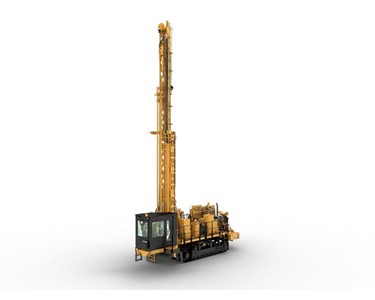

The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.

Specifications

• Bit Load (single-Pass): 16964 kg
• High Volume Water Injection - Maximum - Tank Above Deck - Capacity: 757 l
• Single-Pass Depth: 11 m
• Hoist Speed: 1.32 m/s
• Width cab end*: 4.18 m
• Hole Depth Range - Single-Pass Depth: 11 m
• U.S. EPA Tier 4 Final - Power Rating (ISO 14396): 439 kW
• U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396): 438 kW
• Travel Speed - High: 3.3 km/h
• 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5: 152 mm
• 9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4: 140 mm
• Travel Speed - Low: 2.1 km/h
• High Volume Water Injection - Maximum - Tank Below Deck - Capacity: 757 l
• Width non-cab end: 3.57 m
• Height mast up: 16.54 m
• Body Length: 9.44 m
• Length mast down: 17.54 m
• Height mast down: 3.58 m
• Mast only length: 15.89 m
• Torque - Single Motor: 8360 N·m
• Water Injection - Tank Mounted Below Front Deck: 757 l
• High Volume Water Injection - Maximum - Tanks Total Capacity: 1514 l
