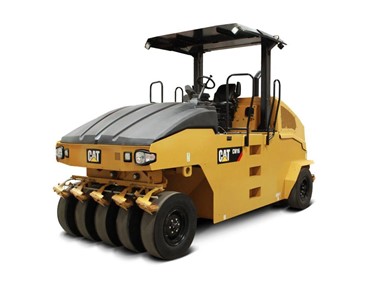

Cat - Pneumatic Rollers CW16 11-Wheel Get latest price

Specifications

Weights

• Operating Weight - 11 Wheel Base Machine: 5300 kg
• Operating Weight - 11 Wheel with Maximum Ballast: 14900 kg
• Load per Wheel - 11 Wheel Base Machine: 480 kg
• Load per Wheel - 11 Wheel with Maximum Ballast: 1350 kg

Operating Specifications

• 11 Wheel Compaction Width with Bias Tire: 2132 mm
• Travel Speed - Maximum: 19 km/h
• Ground Clearance: 241 mm
• Turning Radius - Outside: 6455 mm
• 11 Wheel Compaction Width with Radial Tire: 2103 mm
• Inside Turn Radius - 11 Wheel: 3378 mm

Engine

• Gross Power: 75 kW
• Engine Model: C3.4B or C4.4

Dimensions

• Height - ROPS: 3000 mm
• Overall Length: 4290 mm
• Height - Steering Wheel: 2320 mm

Service Refill Capacities

• Water Spray Tank Capacity: 348 l
• Fuel Tank Capacity: 146 l

To contact William Adams about Cat Pneumatic Rollers CW16 11-Wheel use Get a quote.
