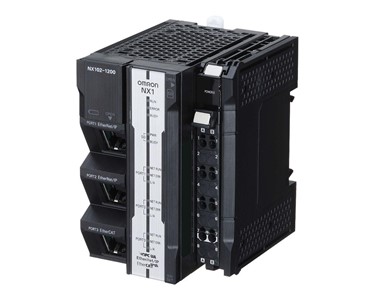

Automation Controller 4 PTP axes | NX102-1200 Price Guide: $7,399 Get latest price

Read more...

To contact Omron Automation & Robotics about Automation Controller 4 PTP axes | NX102-1200 use Get a quote.

Specifications:

• Max. numeric of axes (incl. virtual) 15
• Max. numeric of expansion units 32
• Max. numeric of PTP axes 4
• Max. numeric of remote I/O nodes 64
• Max. numeric of synchronous axes 8
• Primary task cycle time 1 ms
• Program memory 5 MB
• Variables memory 33.5 MB
• Supports AI control No
• Supports DB connection No
• Supports motion control Yes
• Supports OPC-UA Yes
• Supports position control Yes
• Supports sequence control Yes
• Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485
• Communication port(s) EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
• Controller functionality Motion control, Position control, Sequence control, OPC-UA
• I/O system NX I/O Bus
