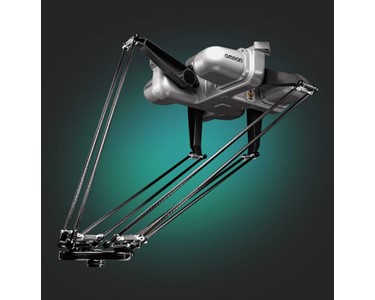

The iX4 and Quattro Parallel Robots feature patented four-arm designs that provide enhanced stability and support for heavy, multi-picking tasks. With USDA-compliant, IP65/66/67 hygienic protection, they are ideal for contamination-sensitive applications. The iX4 integrates seamlessly with Sysmac Studio via EtherCAT®, while the Quattro supports ACE software and ePLC through Ethernet connectivity, offering programming flexibility. With working diameters up to 1600 mm and cycle times as fast as 0.30 seconds, these robots deliver efficiency, precision, and productivity in demanding industrial environments.

Key Features

• iX4-650: 1300 mm working diameter, 15 kg payload, cycle times 0.30–0.61 s, IP65/66/67 USDA-compliant, EtherCAT® via NJ501-R, Sysmac Studio programming
• iX4-800: 1600 mm working diameter, 10 kg payload, cycle times 0.40–0.55 s, IP65/66/67 USDA-compliant, EtherCAT® via NJ501-R, Sysmac Studio programming
• Quattro-650: 1300 mm working diameter, 15 kg payload, cycle times 0.37–0.59 s, IP65/66/67 USDA-compliant, Ethernet connectivity, ACE software or ePLC programming
• Quattro-800: 1600 mm working diameter, 10 kg payload, cycle times 0.33–0.62 s, IP65/66/67 USDA-compliant, Ethernet connectivity, ACE software or ePLC programming

Applications

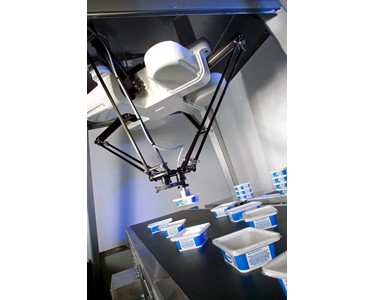

• High-speed food and pharmaceutical packaging
• Multi-picking for logistics and consumer goods
• Sanitary automation requiring contamination-free performance
