Allclear TA400 Grinding & Welding Down Draft Table With Filter 3ph/415

Allclear TA400 Grinding & Welding Down Draft Table With Filter 3ph/415V

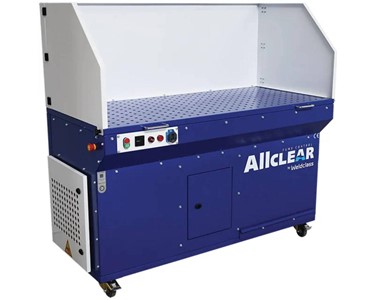

The ALLCLEAR® TA400 is a heavy-duty mobile downdraft table, for welding, grinding, cutting, and gouging. Equipped with automatic filter cleaning system, the TA400 is efficient to use and maintain. Impressive airflow rate of 2,500m³/hr and highly effective fume extraction for a safe and healthy work environment, thanks to a powerful 2.2kW motor and internal design engineered for maximum suction efficiency.
Other features include; spacious 1500 x 700mm downdraft workbench, 500kg load capacity, heavy-duty 5mm table top, 10A 230V outlet for powering grinders and other tools, hinged side panels, working hour counter, filter fullness indicator, and more.
Multi-level spark filtration (mesh filter plus deflector) allows for safe use with processes that generate high levels of sparks and spatter, such as heavy grinding, welding with heavy material, flux-cored wire, gouging, etc. Mounted on casters for mobility, and operates off 3-phase 415V power supply.

FEATURES:
- 7 Year Warranty Offer*
- Down-draft welding & grinding table with inbuilt filter
- For grinding, welding, cutting, and gouging fumes
- Hinged side panels allow placement of longer objects on the table
- Operates on 415V 3-phase power
- Cleanable filter for longer filter life & reduced operating costs
- Automatic filter cleaning (requires unit to be connected to compressed air supply)
- Heavy-duty build for industrial use, with exceptional 2,500m³/hr airflow rate and 500kg load capacity
- Spacious 1500 x 700mm down-draft work bench
- 10A ~230V outlet at front of table provides convenient power supply for tools such as welders and grinders
- For operator safety and compliance, power is only supplied to the 230V outlet if the fume table & filter are in operation / turned on
- Replaceable Spark Filter, plus special Deflector Plate shields the main filter from coarse particles & sparks, virtually eliminating the risk of burnout / fire, and further increasing filter life
- Automatic filter cleaning saves operator down-time (start cleaning cycle at end of shift & walk away)
- ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) provides a more thorough clean, maintains better filter condition, and extends filter life
- Special dust collection drawer / tray allows easy & safe removal of dust (ejected from filter cleaning)
- Hinged left and right side panels can be swung back, to allow placement of larger objects on the table
- Ergonomic design with easy access to replacement filters and service areas
- Heavy-duty 5mm steel table-top for durability and surface rigidity
- Commonly used in Education, Maintenance, and Industrial applications
- Working hour counter, filter fullness indicator, malfunction warning

APPLICATIONS:
- Welding, including MIG, Flux-Core, Stick, TIG
- Grinding of steel or stainless-steel
- Plasma Cutting
- Oxy Cutting, Brazing, Soldering
- Gouging
- Multi-level spark filtration (mesh filter plus deflector) allows for safe use with processes that generate high levels of sparks and spatter**
- NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

SPECIFICATIONS:
- Power supply: 3-phase ~415V
- Work area / table top dimensions: W1500 x D700mm
- Table top height: Approx 900mm
- Overall dimensions: W1580 x D780 x H1450mm
- Weight: 300kg
- Load capacity: 500kg
- Motor size: 2.2kw
- Filter type: Cleanable
- Filter cleaning: Automatic
- Max air flow: 2,500m³ / hour
- Noise level: 74 dBA
- Table Top: 5mm coated steel
- Body: coated steel
- Fan: Aluminium
- Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
- Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
