Allclear Allclear MA100 Fume Filter Unit ...

Allclear - Allclear MA100 Fume Filter Unit 1ph/240v Incl 3m Arm

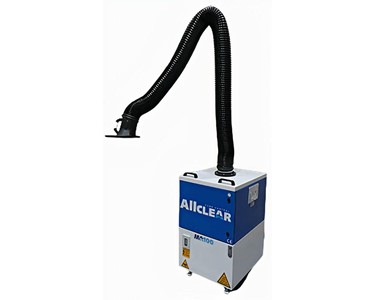

Allclear MA100 Fume Filter Unit 1ph/240v Incl 3m Arm

The MA100 is durable mobile extraction unit equipped with a 3m arm. It incorporates technology effectively to make it more user-friendly. The control switchboard includes operating hours, filter control and the on/off button. The emergency control switch is located on the top for easy access. The 1PH/240V engine increases suction performance. The 3m arm with 360-degree movement does not interfere with suction. The cartridge filter makes replacement stress free including a de-dusting compartment to increase the cartridge lifetime. The quality casters also allow for easy mobility.

FEATURES:
- Cleanable cartridge filter for extended filter life
- Filter cleaning door provides easy and safe access to ‘clean’ side of the cartridge filter
- Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- Pre-seperator “impact plate” shields filters from coarse particles & sparks, reducing the risk of burnout and increasing filter life
- High extraction performance (max air flow: 3,000m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Collection tray allows safe removal of dust ejected from filter cleaning
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatues
- Lightweight and durable suction hood catches particles with a large inlet

SPECIFICATIONS:
- Power supply: Single phase ~230V 10A
- Dimensions (mm): L780 x W600 x H1000
- Weight: 100kg
- Motor size: 1.1kw
- Max air flow: 3,000m³ / hour
- Air flow at suction point: 1,600m³ / hour
- Filter surface area: 14.5m²
- Filter cleaning: Manual (access via filter cleaning door, clean with compressed air nozzle)
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
