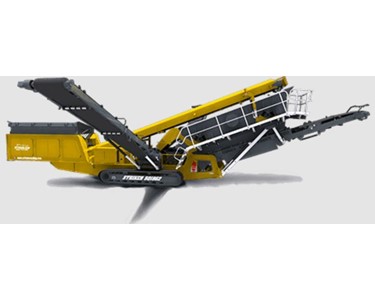

Striker - Mobile Sizing Screen | SQ1862 Get latest price

Striker mobile sizing screens utilise high efficiency inclined and horizontal vibrating screen boxes; offering exceptional output capacity and accurate separation for screening in mining, sand, gravel, aggregate, recycling and demolition applications.

Robust tracks and chassis ensure excellent on site positioning and mobility together with operational stability. Variable speed product conveyors can be hydraulically or electrically operated and easily stowed for transport. Striker ’s versatility allows for the customer to decide on the power source, giving them the option of picking the power source they would prefer.

Striker SQ1862 SPECIFICATION

• Hopper Capacity: 9m³
• Screenbox
  • Top Deck – 5.5m x 1.8m
  • Bottom Deck – 5.5m x 1.8m
  • Angle – 20°-30°
• Tail Conveyor: 1.5m
• Power Pack: C4.4 96kW
• Side Conveyor: 0.8m
• Weight: 36T
• Operation Dimension: L 19.1m x W 18.4m  x H 5.8m
• Transport Dimension: L 18.1m x W 3m x H 3.5m

To contact Striker Crushing about Striker Mobile Sizing Screen | SQ1862 use Get a quote.
