Dependable screening with 3 decks

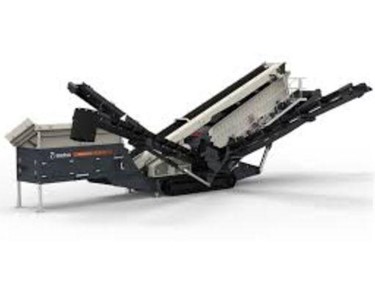

Nordtrack™ S4.12 mobile screen has 3 decks for effective high volume screening. With the extra remote controller, you can control the feeder functionalities from, for example, the excavator cabin.

Applications

• Sand and gravel
• Organic materials screening
• Aggregate screening

Key features

• Large screenbox with 3 decks
• Efficient feeding
• Simple to set up and service
• Efficient dust suppression (option)
• Powerful engine
• Easy to move on-site

Specifications

• Screen size:
  • Top deck 6,710 x 1,830 mm (22’ x 6’)
  • Middle deck  6,710 x 1,830 mm (22’ x 6’)
  • Bottom deck 6,100 x 1,830 mm (20’ x 6’)
• Decks: 3
• Feed hopper: 4,500 mm wide feed hopper (10,0 m³ / 13,1 yd³)
• Engine : Tier 3: CAT C7.1 CSE 209 kW (280 HP), Tier 4F/Stage V: CAT C7.1 168 kW (225 HP)
• Weight: 42,400 kg (93,500 lbs)
• Transport width: 3,700 mm (12' 2")
• Transport height: 3,600 mm (11' 10")
• Transport length: 19,600 mm (64' 2")
• Included in standard configuration: Tipping grid, Three-way platform, Hydraulic lifting conveyor raising, Hydraulic fines conveyor lowering, Remote controller for tracks, Working lights, Hydraulic PTO
• Options: Water spraying system with pump, Extra remote controller for feeder functions, Two-deck vibrating grid, Dual Power upgrade kit to drive the hydraulics with external electric power
