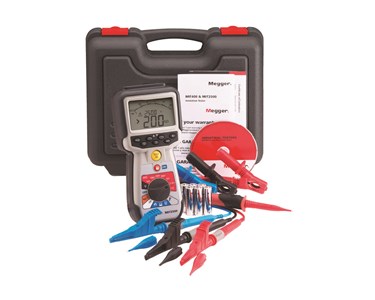

Megger - MIT2500 CAT IV Insulation and Continuity Tester 2500V, 200GΩ

Supplier: OBIAT Electronics Pty Ltd

MIT2500 CAT IV Insulation and Continuity Tester 2500V, 200GΩ

The MIT2500 CAT IV Insulation and Continuity Tester is a versatile tool designed for high-voltage testing up to 2500V, perfect for demanding electrical environments.

Insulation testing up to 2.5 kV and 200 GO range.

Receive 1-3 days from order

Overview

The MIT2500 CAT IV Insulation and Continuity Tester is engineered for rigorous electrical testing applications, offering both fixed and variable voltage settings. This handheld instrument is ideal for testing motors, cables, and other electrical systems requiring high insulation test voltages.

Key Features

Insulation testing up to 2.5 kV and 200 GO range, ensuring comprehensive testing capabilities.
Adjustable insulation test voltage from 50 V to 2500 V, providing flexibility for various applications.
Guard terminal for high resistance accuracy, enhancing measurement precision.
Rechargeable options for mains and car charging, offering convenience and portability.
Single range, faster continuity testing from 0.01 O to 1 MO, improving efficiency.
Polarisation Index (PI) & Dielectric Absorption Ratio (DAR) for detailed analysis.
CAT IV 600 V applications, ensuring safety in high-voltage environments.

Technical Specifications

Below are the detailed specifications of the MIT2500:

Voltage Range	AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz), DC: 0 to 600 V
Volt Range Accuracy	AC: ± 2% ± 2 digits, DC: ± 2% ± 2 digits
Frequency Measurement Range	15 Hz – 400 Hz
Frequency Measurement Accuracy	± 0.5% ± 1 digit
Capacitance Range	0.1 nF to 10 µF
Capacitance Accuracy	± 5.0% ± 2 digits
Storage Capacity	>1000 test results
Bluetooth® Range	Up to 10 m (33 ft)
Power Supply	6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP)
Battery Life	3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 500 V into 1000 kO
Dimensions	228 mm x 108 mm x 63 mm
Weight	815 g (instrument only), 1.75 kg (with case)
Safety Protection	EN 61010-1 (1995) to 600V phase to earth, Category IV
IP Rating	IP54

Applications

The MIT2500 is suitable for a wide range of applications including:

Single and three-phase rotating machinery
Single and multi-core cable testing
Motor testing
Commercial avionics
Military land, marine, and air communications
Manufacturing and production line goods
Electrostatic measurement
Component testing
Battery powered traction and lifting equipment

Overview

Key Features

Insulation testing up to 2.5 kV and 200 GO range, ensuring comprehensive testing capabilities.
Adjustable insulation test voltage from 50 V to 2500 V, providing flexibility for various applications.
Guard terminal for high resistance accuracy, enhancing measurement precision.
Rechargeable options for mains and car charging, offering convenience and portability.
Single range, faster continuity testing from 0.01 O to 1 MO, improving efficiency.
Polarisation Index (PI) & Dielectric Absorption Ratio (DAR) for detailed analysis.
CAT IV 600 V applications, ensuring safety in high-voltage environments.

Technical Specifications

Below are the detailed specifications of the MIT2500:

Voltage Range	AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz), DC: 0 to 600 V
Volt Range Accuracy	AC: ± 2% ± 2 digits, DC: ± 2% ± 2 digits
Frequency Measurement Range	15 Hz – 400 Hz
Frequency Measurement Accuracy	± 0.5% ± 1 digit
Capacitance Range	0.1 nF to 10 µF
Capacitance Accuracy	± 5.0% ± 2 digits
Storage Capacity	>1000 test results
Bluetooth® Range	Up to 10 m (33 ft)
Power Supply	6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP)
Battery Life	3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 500 V into 1000 kO
Dimensions	228 mm x 108 mm x 63 mm
Weight	815 g (instrument only), 1.75 kg (with case)
Safety Protection	EN 61010-1 (1995) to 600V phase to earth, Category IV
IP Rating	IP54

Applications

The MIT2500 is suitable for a wide range of applications including:

Single and three-phase rotating machinery
Single and multi-core cable testing
Motor testing
Commercial avionics
Military land, marine, and air communications
Manufacturing and production line goods
Electrostatic measurement
Component testing
Battery powered traction and lifting equipment

Read less...
