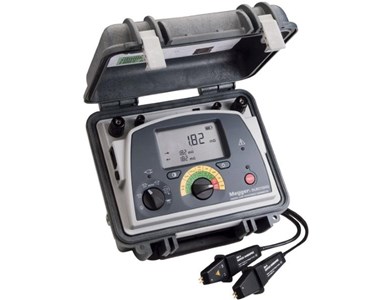

Megger - DLRO10HD 10 Amp Digital Low Resistance Ohmmeter

Supplier: OBIAT Electronics Pty Ltd

DLRO10HD 10 Amp Digital Low Resistance Ohmmeter

The DLRO10HD 10 Amp Digital Low Resistance Ohmmeter offers robust performance with its IP65-rated case and versatile power options, ideal for continuous testing in various environments.

Rugged IP65 case with versatile power options.

Overview

The Megger DLRO10HD is a high-performance digital low resistance ohmmeter designed for both ground and bench operations. Its rugged IP65-rated case ensures durability, making it suitable for a variety of testing environments. The device can be powered by either a rechargeable battery or line power, providing flexibility for continuous testing in production line settings.

Key Features

Rugged IP65 case for stable ground and bench operation.
Powered by rechargeable battery or line power for continuous use.
Simple rotary switch controls for ease of use in all weather conditions.
Large, clear, backlit LCD display for easy readability.
Five selectable test modes for versatile testing applications.
CAT III 300 V safety rating for enhanced protection.

Technical Specifications

Below are the detailed technical specifications for the DLRO10HD:

Specification	Details
Resistance/Current Ranges	0.1 mA to 10 A
Resolution	0.1 mO to 100 mO
Accuracy	±0.2%
Temperature Coefficient	< 0.01% per ºC
Maximum Altitude	2000m
Display	5 digit + 2 x 5 digit secondary displays
Battery Type	6 V, 7Ah sealed lead acid
Mains Voltage Input Range	90 – 264 V, 50-60 Hz
Charge Time	8 hours
Weight	6.7 kg
Case Dimensions	L315mm x W285mm x H181mm
IP Rating	IP65 case closed, IP54 battery operation
Operating Temperature	+5ºC to +45ºC

Applications

The DLRO10HD is ideal for measuring low resistance in various applications, including motors, generators, and other inductive loads. Its multiple test modes allow for precise and reliable measurements in different scenarios.

Included Accessories

DH4 duplex handspike 1.2m
Test lead pouch (lid mounted)
DLRO10HD user guide CD
Warranty book

Overview

Key Features

Rugged IP65 case for stable ground and bench operation.
Powered by rechargeable battery or line power for continuous use.
Simple rotary switch controls for ease of use in all weather conditions.
Large, clear, backlit LCD display for easy readability.
Five selectable test modes for versatile testing applications.
CAT III 300 V safety rating for enhanced protection.

Technical Specifications

Below are the detailed technical specifications for the DLRO10HD:

Specification	Details
Resistance/Current Ranges	0.1 mA to 10 A
Resolution	0.1 mO to 100 mO
Accuracy	±0.2%
Temperature Coefficient	< 0.01% per ºC
Maximum Altitude	2000m
Display	5 digit + 2 x 5 digit secondary displays
Battery Type	6 V, 7Ah sealed lead acid
Mains Voltage Input Range	90 – 264 V, 50-60 Hz
Charge Time	8 hours
Weight	6.7 kg
Case Dimensions	L315mm x W285mm x H181mm
IP Rating	IP65 case closed, IP54 battery operation
Operating Temperature	+5ºC to +45ºC

Applications

Included Accessories

DH4 duplex handspike 1.2m
Test lead pouch (lid mounted)
DLRO10HD user guide CD
Warranty book
