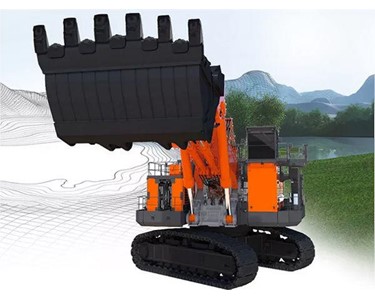

Large Excavators EX8000-7 (Electric Drive) ...
The EX8000-7 is Hitachi Construction Machinery’s largest electric drive excavator, purpose-built to meet the needs of intensive mining operations. With advanced fuel optimization, state-of-the-art safety features, and a design focused on effortless operation and easy maintenance, it is engineered to maximize uptime and productivity even in tough conditions.
| General | |
|---|---|
| Electric Motor Power Output | 2 x 1200 kW (1,632 PS, 1,609 HP) |
| Operating Weight | 808,000 - 820,000 kg |
| Attachments & Capacity | |
| Loading Shovel Bucket (ISO 7546 Heaped 2:1) | 43.0 - 45.0 m³ (56.2 - 58.9 cu. yd.) |
| Backhoe Bucket (ISO 7451:2007) | 48.0 - 52.0 m³ (62.8 - 68.0 cu. yd.) |
| Main Pumps | 16 variable-displacement, axial piston pumps |
| Maximum Oil Flow | 16 x 500 L/min (16 x 132.1 gal./min.) |
| Weights and Ground Pressure | |
| Shoe Type | Induction-Hardened Cast Steel |
| Shoe Width | 1,850 mm (72 in.) |
| Operating Weight (Loading Shovel) | 808,000 kg (1,780,000 lb.) |
| Operating Weight (Backhoe) | 820,000 kg (1,810,000 lb.) |
| Ground Pressure | 247 kPa (2.52 kgf/cm², 35.8 psi) |
| Working Ranges | |
| Max. Digging Reach (Loading Shovel) | 18,800 mm (61 ft. 8 in.) |
| Max. Dumping Height (Loading Shovel) | 13,800 mm (45 ft. 3 in.) |
| Max. Digging Reach (Backhoe) | 21,300 mm (69 ft. 11 in.) |
| Max. Digging Depth (Backhoe) | 7,740 mm (25 ft. 5 in.) |
| Max. Dumping Height (Backhoe) | 11,600 mm (38 ft. 1 in.) |
| Dimensions | |
| Undercarriage Width | 8,650 mm (28 ft. 5 in.) |
| Overall Width of Upper Structure | 11,460 mm (37 ft. 7 in.) |
To contact Farm Plus Services Group Australia Pty Ltd about Large Excavators EX8000-7 (Electric Drive) use Get a quote.
