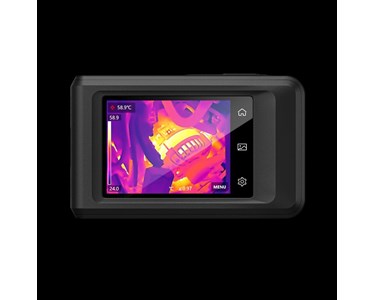

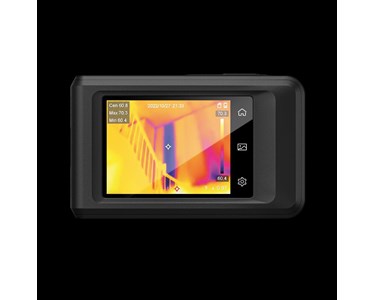

HIKMICRO POCKET2 Compact Thermal Camera

HIKMICRO - POCKET2 Compact Thermal Camera

Supplier: OBIAT Electronics Pty Ltd

POCKET2 Compact Thermal Camera

The Pocket2 Thermal Camera offers professionals an advanced, compact solution for precise thermal imaging, featuring a highly sensitive detector and innovative image enhancement technologies.

Compact size Thermal Camera

Receive 1-3 days from order

Key Features

The HIKMICRO Pocket2 Thermal Camera is a high-performance, compact device designed for professionals seeking precision and ease of use in thermal imaging. It features an advanced VOx detector with a resolution of 256 x 192 pixels, ensuring exceptional image quality. The device's SuperIR image enhancement algorithms and fast image frequency of 25 Hz provide a clear and detailed thermal view.

Dual Thermal-Visible Camera: Switch between multiple image modes and save both visual and thermal images with ease, enhancing workflow efficiency.
3.5” LCD Touch Screen: The 640x480 touchscreen with auto-rotation simplifies operations and improves image contrast.
Adjustable Image Settings: Customize color palettes and distribution for desired image effects.
Wide and Precise Temperature Measurement: Measure temperatures ranging from -20? to +400? with high accuracy.
Fast Troubleshooting: Ideal for HVAC, electrical, and mechanical fields, providing instant alerts for temperature anomalies.
Innovative Macro Mode: Use the clip-on macro lens to see details as small as 100 microns, perfect for small components.

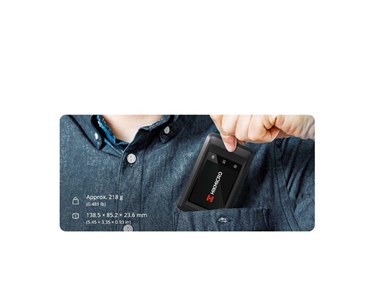

Portable Design: Compact and ergonomic, fits easily in your pocket or tool bag.
Durable Construction: IP54 rated for dust and water resistance, withstanding drops up to 2 meters.

Technical Specifications

Explore the detailed specifications of the HIKMICRO Pocket2 Thermal Camera below.

Specification	Details
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	3.5 mm
F-number	F1.1
Field of View (FOV)	50° × 37.2°
Spatial Resolution (IFOV)	3.43 mrad
Focus Mode	Focus Free
Distance to Spot Ratio (D:S)	45:1
Min. Focus Distance	0.3 m
Visual Camera	3264 × 2448 (8 MP)
Display	640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation
Digital Zoom	1.0x to 4.0x continuous
Object Temperature Range	-20? to +400?
Accuracy	±2? or 2% of reading
Storage Media	16GB internal memory
Protection Level	IP54
Drop Test Height	2 meters
Weight	Approx. 350g
Dimension	206 x 75 x 45 mm

Applications

The HIKMICRO Pocket2 is ideal for use in HVAC, electrical, and mechanical inspections, providing fast and accurate temperature measurements and troubleshooting capabilities.

What's in the Box

The package includes a soft carrying pouch, USB-A to USB Type-C cable, wrist strap, thermal imager, printed quick start guide, and a calibration certificate.

Key Features

Dual Thermal-Visible Camera: Switch between multiple image modes and save both visual and thermal images with ease, enhancing workflow efficiency.
3.5” LCD Touch Screen: The 640x480 touchscreen with auto-rotation simplifies operations and improves image contrast.
Adjustable Image Settings: Customize color palettes and distribution for desired image effects.
Wide and Precise Temperature Measurement: Measure temperatures ranging from -20? to +400? with high accuracy.
Fast Troubleshooting: Ideal for HVAC, electrical, and mechanical fields, providing instant alerts for temperature anomalies.
Innovative Macro Mode: Use the clip-on macro lens to see details as small as 100 microns, perfect for small components.
Portable Design: Compact and ergonomic, fits easily in your pocket or tool bag.
Durable Construction: IP54 rated for dust and water resistance, withstanding drops up to 2 meters.

Technical Specifications

Explore the detailed specifications of the HIKMICRO Pocket2 Thermal Camera below.

Specification	Details
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	3.5 mm
F-number	F1.1
Field of View (FOV)	50° × 37.2°
Spatial Resolution (IFOV)	3.43 mrad
Focus Mode	Focus Free
Distance to Spot Ratio (D:S)	45:1
Min. Focus Distance	0.3 m
Visual Camera	3264 × 2448 (8 MP)
Display	640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation
Digital Zoom	1.0x to 4.0x continuous
Object Temperature Range	-20? to +400?
Accuracy	±2? or 2% of reading
Storage Media	16GB internal memory
Protection Level	IP54
Drop Test Height	2 meters
Weight	Approx. 350g
Dimension	206 x 75 x 45 mm

Applications

The HIKMICRO Pocket2 is ideal for use in HVAC, electrical, and mechanical inspections, providing fast and accurate temperature measurements and troubleshooting capabilities.

What's in the Box

The package includes a soft carrying pouch, USB-A to USB Type-C cable, wrist strap, thermal imager, printed quick start guide, and a calibration certificate.
