HIKMICRO - M20W Building Inspection Thermal Camera

Supplier: OBIAT Electronics Pty Ltd

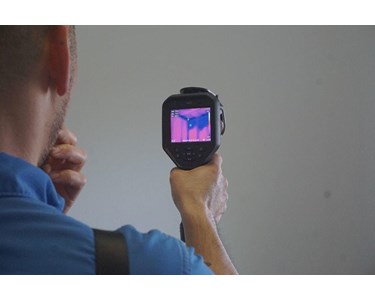

M20W Building Inspection Thermal Camera

Discover the HIKMICRO M20W Building Inspection Thermal Camera! Effortlessly identify heat loss, moisture issues, and electrical faults, ensuring efficient inspections for safer, energy-efficient buildings. Upgrade your inspections today!

Ideal for Building and Pest Inspections

Receive 1-3 days from order

Overview

The M Series Handheld Thermal Imager is a professional-grade thermal imaging camera designed for a variety of industrial applications. It features advanced thermal imaging technology, allowing users to detect temperature anomalies with high precision. This device is perfect for electrical, HVAC, and mechanical inspections, offering both manual and fixed focus options to suit different needs.

Key Features

Manual and Fixed Focus Options: Allows for clear imaging of objects as close as 0.1 m, ideal for tight spaces and hazardous areas.
SuperIR Image Enhancement: Upscales images 4X for detailed inspection and reporting.
Interchangeable Battery System: Includes two Li-ion batteries and a dual bay charger for up to 12 hours of operation.
1-Tap Level & Span: Instantly improves image contrast to highlight potential problems.
5 Image Modes: Offers Thermal, Fusion, PIP, Visual, and Blending modes for versatile imaging.
Rugged Design: IP54 rated for dust and water protection, with 2-meter drop protection.
Laser Pointer: Helps indicate the center point on the actual object for precise analysis.
HIKMICRO Viewer & Analyzer: Connects via Wi-Fi for real-time image transfer, analysis, and report generation.

Technical Specifications

Below are the detailed specifications for the M20W model of the M Series Handheld Thermal Imager.

Specification	Details
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	50° × 37.2°
Spatial Resolution (IFOV)	3.33 mrad
Focus Mode	Focus Free
Min. Focus Distance	0.3 m (0.98 ft)
Visual Camera	3264 × 2448 (8 MP)
Display	640 × 480 Resolution, 3.5" LCD Touch Screen
Digital Zoom	1.0x to 8.0x continuous
Image Modes	Thermal/Visual/Fusion/PIP/Blending
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Object Temperature Range	Range -20? to 150?; Range 0? to 550?
Accuracy	Max (±2°C/3.6°F, ±2%)
Measurement Tools	Center Spot, Hot Spot, Cold Spot, User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth	Bluetooth 4.2
USB Interface	USB Type-C
Battery Type	Interchangeable and rechargeable Li-ion battery
Battery Operating Time	Approx. 4 hours
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Weight	Approx. 686g
Dimension	244 × 100 × 104 mm
Warranty	3 years for the full product, 10 years for the detector, and 2 years for the battery.

Applications

The M Series is suitable for various applications including:

Electrical Box Inspection
Freezer Room Monitoring
Insulation Checks
In Floor Heating Systems
Solar Panel Inspection

What's in the Box

Each M Series Handheld Thermal Imager comes with:

Calibration Certificate
Printed Quick Start Guide
Hard Carrying Case
Charging Base with Adapter and Plugs (US/EU/UK/AU)
Interchangeable Battery x 2
Wrist Strap
64GB Micro SD card
2-in-1 USB-C to USB-CA Cable

Overview

Key Features

Manual and Fixed Focus Options: Allows for clear imaging of objects as close as 0.1 m, ideal for tight spaces and hazardous areas.
SuperIR Image Enhancement: Upscales images 4X for detailed inspection and reporting.
Interchangeable Battery System: Includes two Li-ion batteries and a dual bay charger for up to 12 hours of operation.
1-Tap Level & Span: Instantly improves image contrast to highlight potential problems.
5 Image Modes: Offers Thermal, Fusion, PIP, Visual, and Blending modes for versatile imaging.
Rugged Design: IP54 rated for dust and water protection, with 2-meter drop protection.
Laser Pointer: Helps indicate the center point on the actual object for precise analysis.
HIKMICRO Viewer & Analyzer: Connects via Wi-Fi for real-time image transfer, analysis, and report generation.

Technical Specifications

Below are the detailed specifications for the M20W model of the M Series Handheld Thermal Imager.

Specification	Details
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	50° × 37.2°
Spatial Resolution (IFOV)	3.33 mrad
Focus Mode	Focus Free
Min. Focus Distance	0.3 m (0.98 ft)
Visual Camera	3264 × 2448 (8 MP)
Display	640 × 480 Resolution, 3.5" LCD Touch Screen
Digital Zoom	1.0x to 8.0x continuous
Image Modes	Thermal/Visual/Fusion/PIP/Blending
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Object Temperature Range	Range -20? to 150?; Range 0? to 550?
Accuracy	Max (±2°C/3.6°F, ±2%)
Measurement Tools	Center Spot, Hot Spot, Cold Spot, User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth	Bluetooth 4.2
USB Interface	USB Type-C
Battery Type	Interchangeable and rechargeable Li-ion battery
Battery Operating Time	Approx. 4 hours
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Weight	Approx. 686g
Dimension	244 × 100 × 104 mm
Warranty	3 years for the full product, 10 years for the detector, and 2 years for the battery.

Applications

The M Series is suitable for various applications including:

Electrical Box Inspection
Freezer Room Monitoring
Insulation Checks
In Floor Heating Systems
Solar Panel Inspection

What's in the Box

Each M Series Handheld Thermal Imager comes with:

Calibration Certificate
Printed Quick Start Guide
Hard Carrying Case
Charging Base with Adapter and Plugs (US/EU/UK/AU)
Interchangeable Battery x 2
Wrist Strap
64GB Micro SD card
2-in-1 USB-C to USB-CA Cable
