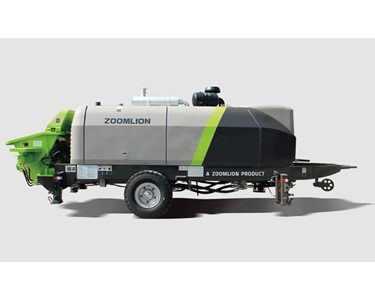

Zoomlion - Trailer Portable Concrete Pump HBT80.16.174RSU Get latest price

Energy Saving: Self-adaptive variable power distribution control technology.

High-Reliability: Key parts and components, after 100,000 m³ concrete assessment.

High-Reliability: Working condition adaptive pumping mode switch, the chance of pump block reduced by more than 50%.

Specifications:

• Maximum theorical output: 81/49m3/h
• Maximum theorical pressure on concrete: 90/160bar
• Strokes/minute: 23/14Min -1
• Concrete cylinder(diameter×stroke): Φ200mm×1800mm
• Hopper capacity: 600L
• Filling height: 1450mm
• Maximum aggregate diameter: 50/Φ150mm
• Inside diameter of delivering pipe: 40/Φ125mm
• Inside diameter of pipe: Φ125/Φ150mm
• Hydraulic system type: Open
• Power: 174kW
• Length×width×height: 7200mmx2200mmx2700mm
• Weight: 7540kg

To contact Spartan Machinery about Zoomlion Trailer Portable Concrete Pump HBT80.16.174RSU use Get a quote.
