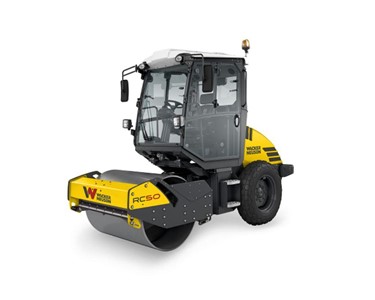

Clear view of the work area and simple operation: RC50

A perfect view in all directions makes working with the Wacker Neuson single drum soil compactors safer and more comfortable. Thanks to the compact design and specially shaped engine hood, the operator always has the work area and the drum in view from his seat. The simple operation via an intuitively designed display and joystick also make work easier and ensure that the operator is familiar with the machine in no time.

• 3-point articulated joint for optimal driving comfort
• Adjustable and rotatable operator’s seat and simple operation via the joystick
• The simplest maintenance and long service intervals
• Maximum gradeability due to the innovative drive concept and generous angle of slope
• 2 model versions: with smooth drum or with sheepsfoot drum

RC50

Operating data General

• Operating weight with roll-over protective structure kg: 4,815
• Operating weight with cabin kg: 5,035
• Operating weight max. kg: 6,040
• Drum type: smooth/undivided

Dimensions

• L x W x H (mm): 4040 x 1500 x 2867
• Drum width (mm): 1,370
• Drum diameter (mm): 1,000
• Operating width (mm): 1,370
• Ground clearance Middle (mm): 270
• Axle load Front (kg): 2,625
• Axle load Rear (kg): 2,410
• Curb clearance left/right (mm): 65
• Turning radius (mm): 3,375

Operating data Vibration

• Centrifugal force (kN): 69
• Frequency (Hz): 30
• Amplitude (mm): 1.55
• Linear force static, front (N/mm): 19.2
• Travel speed Operation, max. (km/h): 6
• Travel speed Transport gear, max. (km/h): 12.5
• Gradeability with vibration (%): 55
• Gradeability without vibration (%): 60

Engine / Motor

• Engine / Motor type: 4-cylinder diesel engine, V3307-CR-T
• Engine / Motor manufacturer: Kubota V3307-CR-T
• RPM / speed (rpm): 2,200
• Operating performance (kW): 55.4
• Emission standards stage: EU Stage V / EPA Tier 4
• Exhaust aftertreatment system: DOC-DPF
• Traction drive: hydrostatic with wheel motor
• Tank capacity (l): 123
