Standard cutting machine for lettuce, vegetable and fruit up to 4 t/h

For industrial cutting of salad, vegetable, fine herbs, fruit and many more products.

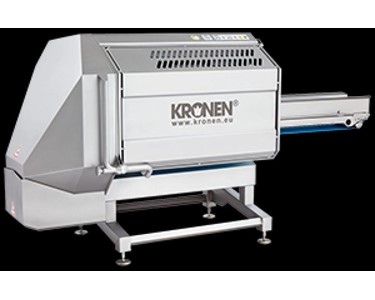

The GS 20 belt cutting machine is equipped with a conveyor belt 250 mm wide and a product down-holder to apply gentle pressure for product control. This key feature holds and controls the product until point of cutting.

Individually definable programs can be stored and selected by the simple use of control buttons and features digital in-motion cutting size adjustment from 1 to 50 mm using a knife with 3 blades. The GS 20 feeding belt has been designed to convey whole heads of lettuce or cabbage.

Technical information

measures

• length 2628 mm
• width 1059 mm
• height 1485 mm
• weight 530 kg
• infeed / feeding height 905 mm
• discharge / outfeed height 470 mm

Power

• total power 3 kW
• voltage 1~230 V N/PE
• frequency 50-60 Hz

Special belt cutters

• belt width 250 mm
• height of downholder 210 mm
• conveyor speed 2,6 - 19 m/min
• knife rotation speed 130 - 590 r/min
• theoretical cutting thickness 1-50 mm

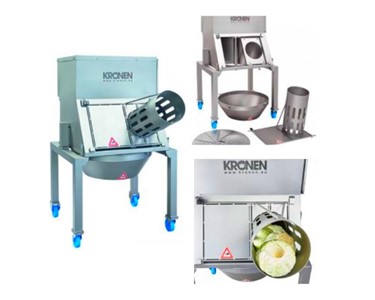

Cabbage Cutting Machine

The cabbage cutter CAP 68 is particularly suitable for cutting large quantities of white and red cabbage.

The large hopper ensures a continuous filling.

Inclined blades guarantee an optimal cut.

Standard cutting thicknesses:

• 1.3 mm
• 1.8 mm
• 2.3 mm
• 2.8 mm

Optimal infeed of product

The CAP68 is suitable for the processing of whole cabbage heads with a diameter of max. 270 mm. The cabbage heads are filled in the machine via a feeding tube. Inclined blades on the knife disc and the special shape of the product infeed guarantee an optimal infeed of the cabbage and avoid any jumping of the cabbage heads. Shred shorteners allow the cutting of strips according to your request.

Cleaning and hygiene

A hygienic, stainless steel construction and an easy to remove blade and funnel are CAP 68 highlights.

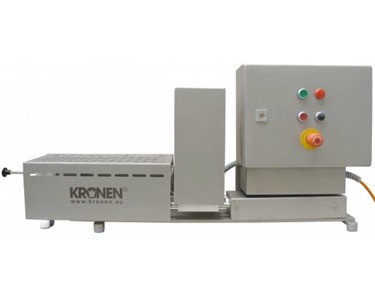

S021 Vegetable Cutting Machine

The vegetable cutting machine S021 is perfectly suited for cutting decorative spirals of vegetables (e.g. carrots, potatoes, pumpkins, radishes, celeriac, beetroots, zucchinis, etc.) very quickly and simply.

By means of variable tools a multitude of spiral thicknesses (e.g. 2 x 2 mm, 2 x 8 mm, 2 x 10 mm - other versions on request) can be produced with a max. product length of 250 mm.

The original result is enabling vegetable-processing companies to add a new touch to conventional product presentation in the market with very attractive, fine, springy strands similar to cooked spaghetti.
