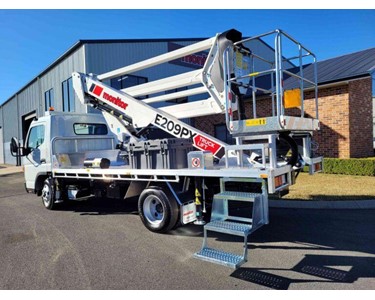

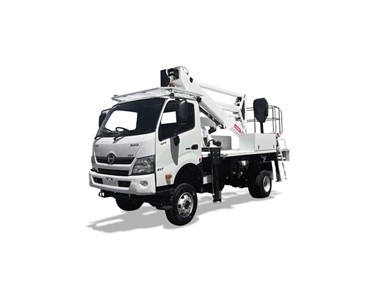

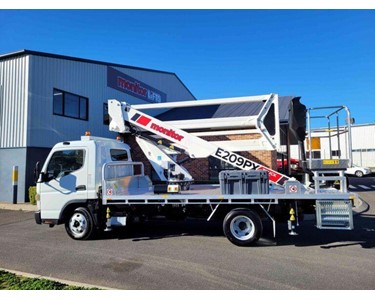

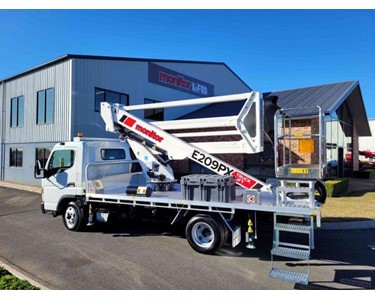

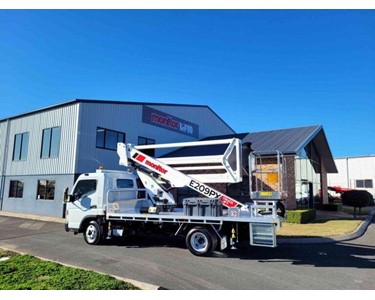

The Monitor E209PX Truck Mounted Lift is a super compact 20m truck mounted lift. This versatile package is a favourite with tree trimming & trades industries. The compact boom is made up of a double articulating boom giving straight “Plumb line” movement making it great for working up a vertical face such as the side of a building. The top section is telescopic providing point and shoot functionality providing 9m outreach. With almost zero tail swing, it is well adapted to work roadside and in confined spaces. The E209PX truck mounted lift is extremely rigid, and safe to accommodate 2 persons and tools with a maximum rated capacity of 220 kg.

The heavy-duty hydraulic proportional multifunctional joysticks are housed within a fully protected area and provide the operator with exceptional smoothness and accuracy even at full height and outreach. Hoses and cables are placed within the booms, with internal tracking which is protected from debris by a set of self-cleaning brushes placed at each of the telescopic sections.

Also Available on Other Chassis

• View the Monitor E209PX on Fuso 515 4×2 »

• View the Monitor E209PX on Hino 815 4×2 »

Specifications:

Max. Working Height:

19.90 m

Max. Working Reach:

8.49 m

Max. Platform Height:

17.70 m

Capacity:

220 kg

Platform Rotation:

Yes

Turret Rotation:

450°

Min. Transport Length:

6.65 m

Min. Transport Width:

2.20 m

Min. Transport Height:

3.00 m

Power:

PTO from Vehicle

Weight:

4,490 kg
