Spider Lifts 200 kg | CMC S19HD Get latest price

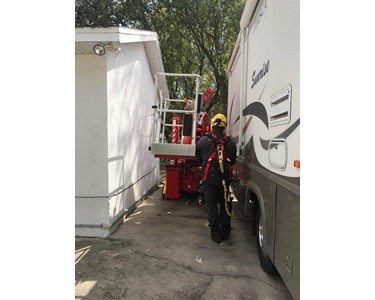

In addition, the S19HD is also capable of setting up in “narrow mode”, with an even smaller footprint. This special feature means reduced outreach, however the lift is still capable of full 360° rotation and full vertical height. Designed and built with a configuration of one lower riser pantograph and two-telescopic boom extensions, the S19HD has a 200kg basket capacity and 180° basket rotation, with close to 19m of working height. Compact dimensions of 0.95m W x 2.04m H means access to virtually any work area.

Specifications:

Max. Working Height:

18.70 m

Max. Working Reach:

11.40 m

Max. Platform Height:

16.70 m

Capacity:

200 kg

Power:

Kubota Diesel & 240V Electric Motor

Weight:

2,880 kg

To contact Monitor about Spider Lifts 200 kg | CMC S19HD use Get a quote.
