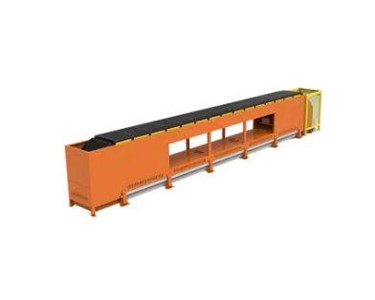

Sortation System 1.5-2.0m/s Linear cross-band sorting system

Supplier: Techsorta Pty Ltd

It is a sorting equipment with high sorting efficiency, wide categories, and diverse application scenarios.

Video for Sortation System 1.5-2.0m/s Linear cross-band sorting system

Receive 1-3 days from order

It is also equipped with comprehensive software and control system, making the system cover a smaller area, fast sorting speed, and high efficiency. It is widely used in express logistics distribution center.

The linear cross-belt sorter has a modular design and can customize the number of slots according to needs, with high deployment flexibility. It replaces a series of operations such as traditional manual handling, unloading, sorting, collection and scanning, and realizes overall fully automatic transmission and sorting, with an efficiency of up to 10,000 pieces/hour and an accuracy rate of up to 99.99%. It occupies a small space and reduces storage costs. It builds a high-speed sorting line for sorting various types of packaging and appearance products, providing customers with customized intelligent logistics sorting solutions.

Feature Highlights

Sorting efficiency: 9000-10000 pieces/hour
Improve sorting efficiency and reduce labor costs
Replace labor with automated processes,Reduce the impact of human factors
Automatic sorting solves the problem of misplacing or missing items
Automatic reading of material information,Real-time data output

Product Parameters

Main line speed:1.5-2.0m/s
Theoretical sorting efficiency:9000 Pcs per hour (affected by package size)	Sorting accuracy: 99.99%
Weighing function: upgradeable dynamic weighing	Code scanning mode: can scan code in many ways
Weighing range: 10g~30KG	Bar code recognition rate: 99.99%
Cart size:200mm1000mm/300mm1000mm	Controller: complete Siemens controller solution (1500, 1200 series PLC)
Cart pitch:200mm/300mm	Loop drive: linear motor
Slot width: 1000mm (customizable)	Car driving mode: electric drum servo drum
Sorted goods size range: 10010010~800800800mm (affected by the width of the grid)	Operating Power: DC48V
Noise level: ≤ 70DB	Product features: compatible with large and special-shaped parts, efficient and stable, convenient maintenance

To contact Techsorta Pty Ltd about Sortation System 1.5-2.0m/s Linear cross-band sorting system use Get a quote.

Feature Highlights

Sorting efficiency: 9000-10000 pieces/hour
Improve sorting efficiency and reduce labor costs
Replace labor with automated processes,Reduce the impact of human factors
Automatic sorting solves the problem of misplacing or missing items
Automatic reading of material information,Real-time data output

Product Parameters

Main line speed:1.5-2.0m/s
Theoretical sorting efficiency:9000 Pcs per hour (affected by package size)	Sorting accuracy: 99.99%
Weighing function: upgradeable dynamic weighing	Code scanning mode: can scan code in many ways
Weighing range: 10g~30KG	Bar code recognition rate: 99.99%
Cart size:200mm1000mm/300mm1000mm	Controller: complete Siemens controller solution (1500, 1200 series PLC)
Cart pitch:200mm/300mm	Loop drive: linear motor
Slot width: 1000mm (customizable)	Car driving mode: electric drum servo drum
Sorted goods size range: 10010010~800800800mm (affected by the width of the grid)	Operating Power: DC48V
Noise level: ≤ 70DB	Product features: compatible with large and special-shaped parts, efficient and stable, convenient maintenance
