Sortation System 1,000 - 1,200 pieces/hour ...
This equipment only requires 1 labor to implement delivery. The system automatically performs flexible sorting and can be sorted directly to the store according to orders. It adopts a three-dimensional design model, which can reduce the floor area by 50%, the sorting efficiency can reach 1,000 - 1,200 pieces per hour, and can save 4-5 labor. We are also equipped with a high-speed and high-precision industrial intelligent scanning module., the sorting accuracy is as high as 99.99%. Sorting data can also be synchronized to the system in real time.
The types of packages that can be sorted include (food, supplies, medicines, books, shoes and clothing, ultra-light items), etc. You can also customize different sizes and layouts of your equipment according to your warehousing needs. Properly reduce costs and increase efficiency for you!

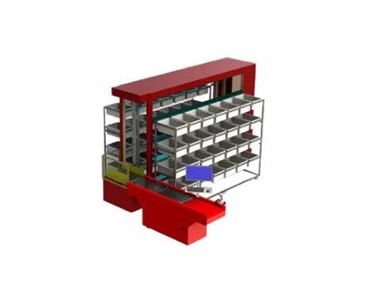

3D Sorting Wall is a cost-effective automatic three-dimensional sorting equipment that can visually identify materials and commodities for secondary classification. It has changed the traditional e-commerce warehouse reliance on manual sorting mode, improved the overall delivery efficiency, reduced the sorting error rate, and thus improved the management efficiency and operation quality of the warehouse.
Feature Highlights
Product Parameter:
| Functional characteristics | Detailed parameters |
| Object code scanning mode | Fully automatic / manual loading |
| Maximum item size | 250*250*220mm |
| Minimum item size | Thicker than 3mm |
| Object weight range | 50g-100kg |
| Sorting efficiency | 1000-1200 pieces per hour |
| operational speed | 2m/s |
| Code reading accuracy | 99.99% |
| Object spacing time | 2.5-3s |
| Operating temperature | -10~50°C |
| Application range of equipment | E-commerce warehousing, pharmaceutical institutions.Distribution terminal, express post station. |
| Voltage | 220V |
| Number of grids | 20-80 |
To contact Techsorta Pty Ltd about Sortation System 1,000 - 1,200 pieces/hour | 3D Sorting Wall use Get a quote.
This equipment only requires 1 labor to implement delivery. The system automatically performs flexible sorting and can be sorted directly to the store according to orders. It adopts a three-dimensional design model, which can reduce the floor area by 50%, the sorting efficiency can reach 1,000 - 1,200 pieces per hour, and can save 4-5 labor. We are also equipped with a high-speed and high-precision industrial intelligent scanning module., the sorting accuracy is as high as 99.99%. Sorting data can also be synchronized to the system in real time.
The types of packages that can be sorted include (food, supplies, medicines, books, shoes and clothing, ultra-light items), etc. You can also customize different sizes and layouts of your equipment according to your warehousing needs. Properly reduce costs and increase efficiency for you!
3D Sorting Wall is a cost-effective automatic three-dimensional sorting equipment that can visually identify materials and commodities for secondary classification. It has changed the traditional e-commerce warehouse reliance on manual sorting mode, improved the overall delivery efficiency, reduced the sorting error rate, and thus improved the management efficiency and operation quality of the warehouse.
Feature Highlights
Product Parameter:
| Functional characteristics | Detailed parameters |
| Object code scanning mode | Fully automatic / manual loading |
| Maximum item size | 250*250*220mm |
| Minimum item size | Thicker than 3mm |
| Object weight range | 50g-100kg |
| Sorting efficiency | 1000-1200 pieces per hour |
| operational speed | 2m/s |
| Code reading accuracy | 99.99% |
| Object spacing time | 2.5-3s |
| Operating temperature | -10~50°C |
| Application range of equipment | E-commerce warehousing, pharmaceutical institutions.Distribution terminal, express post station. |
| Voltage | 220V |
| Number of grids | 20-80 |
To contact Techsorta Pty Ltd about Sortation System 1,000 - 1,200 pieces/hour | 3D Sorting Wall use Get a quote.
