Sensors & Software – Ground Penetrating Radar System | LMX200

Supplier: Testrix

Advanced GPR locating and reporting for professionals.

Receive 1-3 days from order

Advanced Subsurface Utility Detection with Unmatched Clarity and Confidence

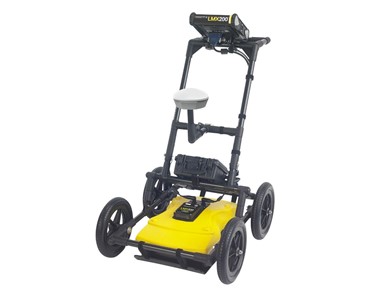

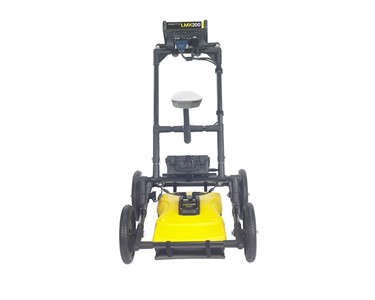

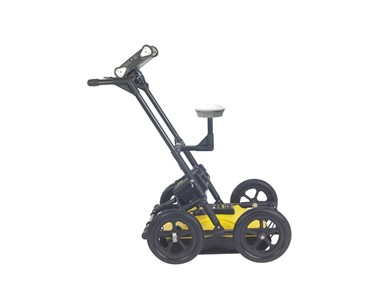

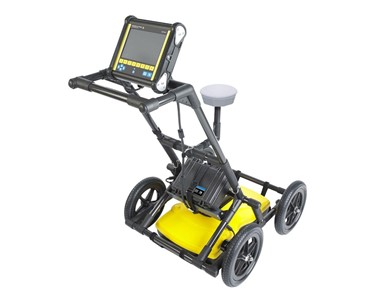

The Sensors & Software LMX200™ Ground Penetrating Radar (GPR) System is a professional-grade tool engineered for infrastructure professionals, surveyors, engineers, and contractors. The LMX200 provides deep subsurface insights, high-resolution scanning, and data visualisation, making it ideal for utility locating, void detection, environmental assessments, and geophysical investigations.

As the most capable system in the LMX line, the LMX200 delivers advanced features and precision for professionals requiring reliable subsurface imaging and mapping.

Key Features and Benefits

Unmatched GPR Imaging with Enhanced Depth Penetration

Equipped with an ultra wideband 250 MHz antenna, the LMX200 provides deep penetration while maintaining high-resolution detail. Perfect for locating metallic and non-metallic utilities, PVC conduits, underground storage tanks (USTs), and subsurface anomalies—even in challenging soils and urban environments.

SmartStack™ and DynaQ™ Signal Enhancement Technologies

SmartStack™ signal enhancement and DynaQ™ automatic signal conditioning reduce noise and refine data, making interpretation of complex or noisy environments easier and more accurate.

High-Resolution Data with SplitView and MapView

SplitView displays LineView (cross-section) and MapView (grid view) simultaneously for full situational awareness and accurate asset marking. MapView compiles GPR data into geo-referenced 2D depth slices for post-processing and reporting.

Integrated GNSS and Optional External GPS

Includes a built-in GPS receiver for georeferenced data collection and supports high-accuracy external GNSS systems for survey-grade applications. Ideal for GIS integration and mapping workflows.

Wi-Fi, USB, and Cloud Connectivity

Data and reports can be transferred via USB, Wi-Fi, or cloud access. Simplifies real-time data sharing and reporting.

Custom Reports with EKKO Project™ Software

Process, interpret, and export results into professional reports with custom annotations, snapshots, depth slicing, and interpretation tools.

Built for Rugged Job Sites

Durable IP65-rated enclosure, 8.0" daylight-readable touchscreen, and all-terrain wheels ensure the system withstands tough field conditions, from construction zones to environmental sites.

Technical Specifications

Antenna Frequency: 250 MHz ultra wideband

Depth Penetration: Up to 8 m (26 ft), soil-dependent

Data Acquisition Rate: Up to 60 scans/second

Display: 8" high-resolution LCD, sunlight-readable

GPS: Internal GPS with external GNSS support

Data Export Formats: JPEG, CSV, KMZ, PDF, GPR, and EKKO Project native

Connectivity: USB, Wi-Fi, Cloud connectivity

Operating Temperature: -20°C to +50°C

Weight: Approx. 22 kg (including battery)

Battery Life: Up to 6 hours (field-swappable lithium-ion battery)

Optional Software: EKKO Project™

Applications

Utility locating and mapping: Detect metallic and non-metallic utilities before excavation.
Environmental assessment: Identify underground storage tanks (USTs) and contamination pathways.
Construction and civil engineering: Map buried infrastructure, rebar, and post-tension cables.
Archaeology and forensics: Detect historical structures and burial sites.
Geotechnical and geological surveys: Locate sinkholes, voids, and rock interfaces.

Why Choose the LMX200 Over Other GPR Models

LMX100 vs. LMX200

Basic utility locating → Advanced utility mapping with post-processing

Single LineView → SplitView, depth slices, and interpretation tools

Limited connectivity → Wi-Fi, USB, and GPS integration

Minimal data export → Full report generation with EKKO Project™

No mapping capability → Full grid scanning with MapView

Included in the Box

LMX200™ GPR System with integrated ultra wideband 250 MHz antenna
Removable battery and charger
Integrated GPS module
USB drive for data export
User manual and quick start guide

Optional Accessories

External GPS antenna for survey-grade precision
EKKO Project™ software for full report generation
Spare lithium-ion battery
Custom transit case
Training and support packages

Order the LMX200 GPR System Today

The Sensors & Software LMX200 GPR System provides advanced tools for non-destructive subsurface investigation. With high-resolution imaging, GPS mapping, rugged mobility, and professional software, the LMX200 enables faster, safer, and more informed decision-making on every job site.
