Entry-Level System for Easy Utility Locating & Mapping

Receive 1-3 days from order

Overview

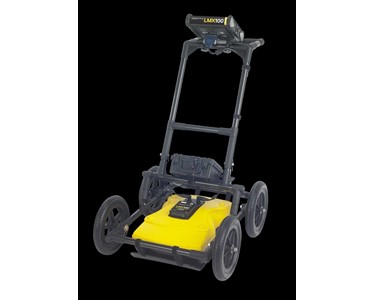

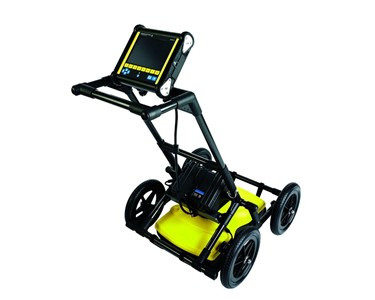

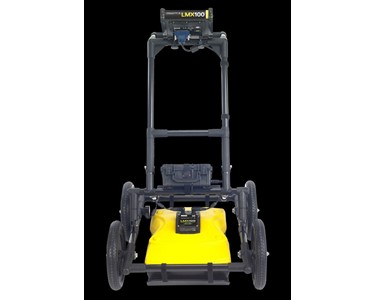

The Sensors & Software LMX100 Ground Penetrating Radar (GPR) System is a powerful entry-level subsurface imaging tool designed for professionals who need to locate buried utilities, inspect shallow subsurface structures, and reduce the risk of damage during excavation. Developed by the pioneers of GPR technology, Sensors & Software, the LMX100 offers a cost-effective and intuitive solution without compromising performance or reliability.

Ideal for utility locators, construction crews, civil engineers, and municipal maintenance teams, the LMX100 helps users detect metallic and non-metallic utilities, voids, and other anomalies in a variety of soil conditions with confidence and efficiency.

Key Features & Benefits

Dual-Frequency Antenna for Optimal Detection

Equipped with a 250 MHz central frequency antenna, the LMX100 is tuned to detect a wide range of subsurface features with optimal depth penetration and resolution. It can locate metallic and non-metallic pipes, conduits, and cables at depths of up to 8 metres, depending on ground conditions.

High-Contrast Display with Real-Time Data

Features a bright, high-resolution touchscreen display for real-time viewing of subsurface data. The radargrams show reflections of buried utilities and anomalies, enabling faster and more confident decision-making on site.

Plug-and-Play Simplicity

Straightforward setup and operation require minimal training. The user-friendly interface with clear menu navigation allows operators of all experience levels to use the device effectively from day one.

Integrated Data Storage & USB Export

Includes internal memory for data logging and a USB port for quick export of survey files. Findings can be easily transferred for documentation, analysis, or post-processing.

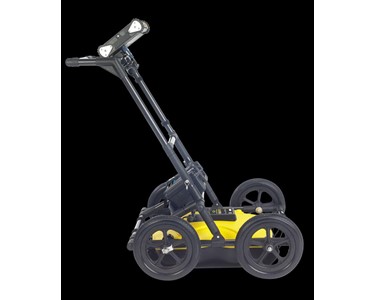

Durable, Rugged Cart Design

Built with industrial-grade materials, the LMX100 is IP65-rated and designed to withstand tough field environments. The lightweight cart folds for compact transport and storage.

Real-Time Marking of Targets

Allows users to mark detected targets on the ground in real-time using built-in utility markers, streamlining follow-up excavation or avoidance work.

Technical Specifications

Antenna Frequency: 250 MHz central frequency

Depth Range: Up to 8 metres (site and soil dependent)

Display: High-resolution, sunlight-readable touchscreen

Data Storage: Internal memory with USB export

User Interface: Touchscreen with intuitive menu navigation

Data Output: Raw GPR data for use with EKKO_Project software

Operating Temperature: -20°C to +50°C

Environmental Rating: IP65 water and dust resistant

Power Supply: Rechargeable battery (8+ hour operation)

Weight: Approx. 18 kg (fully assembled)

Portability: Foldable and easy to transport

Common Applications

Utility detection: Locate water pipes, gas lines, electrical conduits, telecom cables, and sewer lines, both metallic and non-metallic.
Pre-excavation safety surveys: Identify hidden hazards before trenching, digging, or drilling.
Municipal infrastructure maintenance: Map and track underground assets for city planning and repairs.
Construction site assessments: Conduct quick scans to verify safe zones and mark potential obstructions.
Environmental and archaeological studies: Identify buried objects, voids, or anomalies in sensitive survey areas.

Why Choose the LMX100 Over Electromagnetic Locators

While EM locators detect conductive targets, they struggle with non-metallic utilities such as PVC or fiber optics. The LMX100 uses GPR technology to detect changes in dielectric properties of subsurface materials, enabling detection of both metallic and non-metallic structures with greater confidence.

The LMX100 is an essential tool for utility locators who want to expand detection capabilities and improve on-site safety.

Included in the Box

Sensors & Software LMX100 GPR System with cart and antenna
High-resolution touchscreen display
Rechargeable battery with charger
USB flash drive for data export
Quick-start guide and user manual

Optional Accessories

Extra battery pack for longer field days
Larger wheel set for very uneven terrain
Custom carry case for extended protection

Why Buy from Testrix Systems

Expert technical support from experienced GPR professionals
Free training resources and user guidance
Fast shipping and local warranty support
Competitive pricing and flexible payment options

Boost Subsurface Visibility with the LMX100

Whether locating utilities before excavation or performing infrastructure scans, the LMX100 GPR system delivers reliable results with simplicity and efficiency. Detect more, dig safer, and eliminate guesswork with one of the most trusted names in GPR technology.

Order Now or Request a Quote

Need help choosing the right GPR? Contact our team for a personalised recommendation.

Australian stock, ships Australia-wide

Warranty and local support included

Click ‘Add to Cart’ or ‘Get a Quote’ to get started
