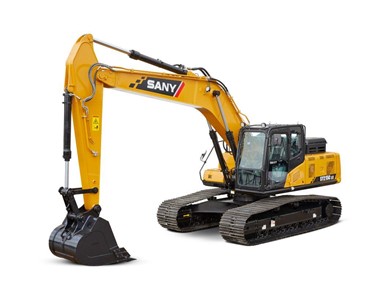

SANY - SY215C - Excavator 21.5T Get latest price

Read more...

To contact WATM Equipment about SANY SY215C - Excavator 21.5T use Get a quote.

• Displacement

  5.86 L
  Engine model

  Mitsubishi Tier 3
  Rated power

  114/2050 kW/rpm
  OPERATION RANGE
  Height at min. swing radius

  7680 mm
  Max. digging depth

  6600 mm
  Max. digging height

  9600 mm
  Max. digging reach

  10280 mm
  Max. dumping height

  6730 mm
  Max. vertical digging depth

  6255 mm
  Min. swing radius

  3730 mm
  Operating weight

  21900 kg
  DIMENSIONS
  Cab height

  3075 mm
  Min. ground clearance

  440 mm
  Tail swing radius

  2900 mm
  Track length

  4250 mm
  Transport height

  3440 mm
  Transport length

  9680 mm
  Transport width

  2980 mm
  Upper width

  2875 mm
  UNDERCARRIAGE/WORKING DEVICE
  Arm length

  2.9 m
  Boom length

  5.7 m
  Bucket capacity

  0.93 m³
  Track gauge

  2380 mm
  Track width

  600 mm
  PERFORMANCE
  Arm digging force

  103 kN
  Bucket digging force

  138 kN
  Cooling system

  25 L
  Engine oil

  22 L
  Fuel tank capacity

  340 L
  Gradeability

  35°
  Ground pressure

  47.4 kPa
  Hydraulic tank capacity

  239 L
  Swing speed

  11 rpm
  Travel speed

  5.4/3.3 km/h
  HYDRAULIC SYSTEM
  Main pump – maximum flow

  5.86 L
