Roland DG Large Format Printer Machine 7″ ...

Roland DG - Large Format Printer Machine 7″ LCD Touch | TrueVIS SG3 Series

Supplier: Prytec Solutions

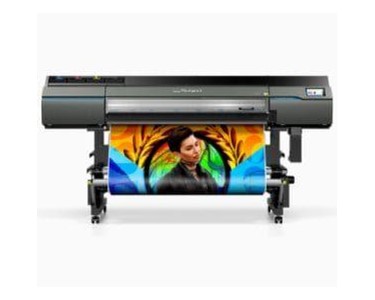

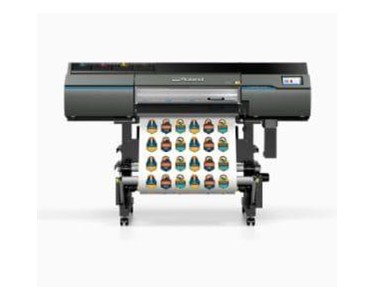

Large Format Printer Machine 7″ LCD Touch | TrueVIS SG3 Series

Offered in two sizes to align with your business requirements and budget, the upgraded SG3 series printer cutters from Roland DG are designed to meet the demands of modern sign and graphics providers for enhanced ease and productivity.

Receive 3-7 days from order

The Roland DG SG3 Series – a cutting-edge line of printer cutters designed to elevate your printing and graphics capabilities. These printers are meticulously enhanced to meet the demands of today's sign and graphics providers. Elevate your business with the innovation and reliability of the Roland DG SG3 Series.

Specifications:

Model		SG3-540	SG3-300
Printing Method		Piezo ink-jet method
Media	Width	11.7 to 54 in. (297 to 1,371 mm)	7.2 to 30 in. (182 to 762 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 77 lb. (35 kg)	Max. 66 lb. (30 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Max. 52.9 in. (1,346 mm)	Max. 28.9 in. (736 mm)
Ink	Type	TrueVIS INK 500 ml pouch
	Colours	Four colours (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland DG CAMM-1 series blade
	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A	100-120/220-240 Va.c. 50/60 Hz 5.4/2.7 A
Power consumption	During operation	Approx. 1,090 W	Approx. 710W
	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)	79.7 in. x 29.5 in. x 52.0 in. (2,022 mm x 748 mm x 1,320 mm)
Weight		417 lb. (189 kg)	331 lb. (150 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment(Use in an operating environment within this range.)

To contact Prytec Solutions about Roland DG Large Format Printer Machine 7″ LCD Touch | TrueVIS SG3 Series use Get a quote.

Specifications:

Model		SG3-540	SG3-300
Printing Method		Piezo ink-jet method
Media	Width	11.7 to 54 in. (297 to 1,371 mm)	7.2 to 30 in. (182 to 762 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 77 lb. (35 kg)	Max. 66 lb. (30 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Max. 52.9 in. (1,346 mm)	Max. 28.9 in. (736 mm)
Ink	Type	TrueVIS INK 500 ml pouch
	Colours	Four colours (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland DG CAMM-1 series blade
	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A	100-120/220-240 Va.c. 50/60 Hz 5.4/2.7 A
Power consumption	During operation	Approx. 1,090 W	Approx. 710W
	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)	79.7 in. x 29.5 in. x 52.0 in. (2,022 mm x 748 mm x 1,320 mm)
Weight		417 lb. (189 kg)	331 lb. (150 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment(Use in an operating environment within this range.)

Read less...

To contact Prytec Solutions about Roland DG Large Format Printer Machine 7″ LCD Touch | TrueVIS SG3 Series use Get a quote.
