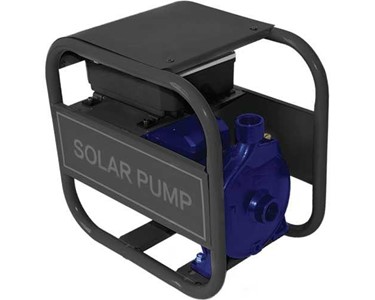

REEFE Solar Transfer Pumps

Available with inlet / outlet sizes of 1", 2" and 3".

The range offers direct pumping via solar panels OR batteries and has little to no ongoing operational cost. These Solar transfer pumps open a range of pumping possibilities. Used anywhere on the farm or homestead where power isn’t available.

Off Grid Transfer Pump

Where there is sun (or if you want to power it by batteries) you can move water.

See the pump details at "StrongmanPumps.com.au > Transfer Pumps" for the Volts DC, Input Voltage or Watts required to power the pump. Observe RPM, Current Draw, Volts and Watts being produced in real time.

The batteries and panels are NOT INCLUDED, so take note of the solar and battery requirements.

The pumps cannot operate by both solar and battery together.

We DO sell these solar transfer pumps with a solar panel pole mount kit (separately).
We do NOT sell the batteries.  If you want to power the pump by batteries, please ensure the voltage for the batteries is adequate or the pump will not work.  The same goes for the solar panel requirements if you are supplying your own panels.

Solar Powered Transfer Pump Details

Model: STP550
Volts DC: 48
Optimal Input Voltage: 60V – 90V
Watts: 550
Solar Panels Required: 2 x 330W
Open Circuit Voltage VOC: <100V
Rated Flow: 100LPM
Rated Head: 10m
Maximum Flow: 116LPM
Maximum Head: 24
Inlet / Outlet Size: 25mm / 1″
Weight: 13kg
Dimensions: L 312mm x W 182mm x H 233mm
.........................................

Model: STP1100
Volts DC: 72
Optimal Input Voltage: 90V – 120V
Watts: 1100
Solar Panels Required: 6 x 330W
Open Circuit Voltage VOC: <150V
Rated Flow: 200LPM
Rated Head: 10.5m
Maximum Flow: 450LPM
Maximum Head: 15
Inlet / Outlet Size: 50mm / 2″
Weight: 21kg
Dimensions: L 365mm x W 197mm x H 257mm
.........................................

Model: STP1500
Volts DC: 110
Optimal Input Voltage: 110V – 150V
Watts: 1500
Solar Panels Required: 8 x 330W
Open Circuit Voltage VOC: <200V
Rated Flow: 400LPM
Rated Head: 10.8m
Maximum Flow: 833LPM
Maximum Head: 17.5
Inlet / Outlet Size: 80mm / 3″
Weight: 31kg
Dimensions: L 400mm x W 235mm x H 313mm

............................................

Model: STP2200
Volts DC: 110
Optimal Input Voltage: 110V - 150V
Watts: 1500
Solar Panels Required: 8 x 330W
Open Circuit Voltage VOC: <200V
Rated Flow: 500LPM
Rated Head: 12.5m
Maximum Flow: 833LPM
Maximum Head: 21
Inlet / Outlet Size: 80mm / 3"
Weight: 33kg
Dimensions: L 400mm x W 235mm x H 313mm

..................................................

Centrifugal Solar Transfer Pump Features

• Compact controller with display for easy observation of system data
• Intervention free operation will automatically start and stop when sufficient UV light is available
• Built in loss prime for protecting your investment
• Easy to handle roll frame with shroud to protect your controller from the elements
• Automatic restart function
• Over voltage and under voltage protection

Construction of Solar Powered Transfer Pump

• Cast iron pump casing and motor bracket
• Brass impeller, prime and drain plugs
• Carbon ceramic mechanical seal
• Powder coated steel roll frame
• User friendly display for operational information
• Sensor input for tank fill or tank empty operation
• Automatic restart function

Applications for Off Grid Transfer Pump

• Water transfer
• Tank filling
• Irrigation
• Dam aeration
• Algae and mosquito suppression

Go to StrongmanPumps.com.au/water-transfer-pumps to view or purchase
