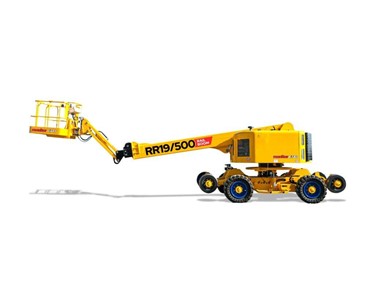

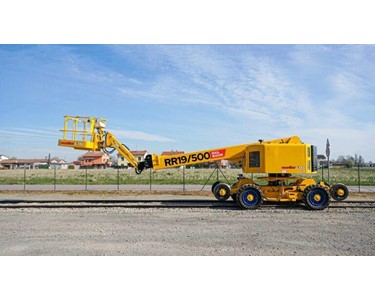

The Monitor RR19/500 Rail Boom Lift is designed to go beyond construction issues for rail aerial work—with a greater reach and load capacity. It also comes equipped with better features to ensure safety, and work efficiency.

This telescopic rail boom lift, developed by Platform Basket, is the bigger version of the infamous RR14. The Monitor RR19/500 is extremely rigid, and safe to accommodate 3 persons with a maximum weight capacity of 500 kg. Weighing just 19.5T, and a vertical outreach of up to 19m, and horizontal outreach of 14m.

With its self-levelling turret feature, working on tracks with cant up to 200mm is now possible to ensure working position is level at all times. Powered by a 55 kW engine, or fully electric operation with lithium-ion batteries in order to make the equipment suitable for use in tunnels, subways and in-door.

Specifications:

Max. Working Height:

19.00 m

Max. Working Reach:

17.00 m

Max. Platform Height:

14.00 m

Capacity:

500 kg

Chassis Type:

4 Wheel Drive with 4 Wheel Steer

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

360°

Outrigger Stabilisers:

No

Min. Transport Length:

2.40 m

Min. Transport Width:

9.50 m

Min. Transport Height:

3.00 m

Power:

Diesel (Hybrid Option)

Weight:

19,500 kg
