Platform Basket - Rail Boom Lifts RR14 EVO3/400 - 14.4m Working Height

Supplier: Monitor

Rail Boom Lifts RR14 EVO3/400 - 14.4m Working Height

Introducing the Platform Basket Monitor RR14 EVO3/400! With a 14m working height, it offers unmatched stability and versatility for all your elevated tasks. Elevate your efficiency today!

Video for Platform Basket Rail Boom Lifts RR14 EVO3/400 - 14.4m Working Height

The Monitor RR14 EVO3/400 Rail Boom Lift has been specifically designed from the ground up for use on rail, and has a host of unique features to provide fast and safe access above both rail and normal terrain.

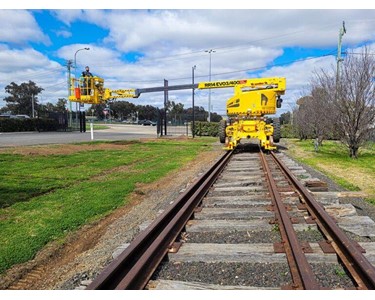

The self-levelling turret and very strong chassis allows an amazing horizontal outreach of 9.3 m when set-up on rail. Not only this, but the Monitor RR14 EVO3/400 will also drive whilst elevated, greatly improving work efficiencies. Available in a tri-gauge version, it can be used on all three rail gauges in Australasia. It is available with the option of direct hydraulic drive, 4 Wheel Steer for superior performance and handling.

Every rail industry requirement has been thought of and catered for, with an emergency back-up diesel engine, electric emergency lowering system and directional LED lights through to the options of an on-board generator, work area lighting, anti-crush device, rail equipment position indication and EDDs.

An optional pantograph is available for measuring the height and distance of overhead wires. A data recorder and GPS device stores inspection data for referencing.

Features

• 2 Speed Drive (Optional)

• 240 Volt Battery System (Optional)

• 240 Volt Outlet in Platform

• 3-Man Platform

• 4WD (Optional)

• Air & Water Outlet in Platform (Optional)

• Fly Jib

• Platform Rotation (Optional)

Specifications:

Max. Working Height:

14.40 m

Max. Working Reach:

12.40 m

Max. Platform Height:

9.30 m

Capacity:

400 kg

Chassis Type:

4 Wheel Drive with 4 Wheel Steer

Hydraulic Fly Boom:

Yes

Platform Rotation:

Yes

Weight/Outreach Limited:

Yes

Turret Rotation:

359°

Outrigger Stabilisers:

Min. Transport Length:

2.36 m

Min. Transport Width:

7.40 m

Min. Transport Height:

2.76 m

Power:

Kubota 14 Hp Diesel & 240v Electric System

Weight:

13,400 kg

To contact Monitor about Platform Basket Rail Boom Lifts RR14 EVO3/400 - 14.4m Working Height use Get a quote.
