Peeling Machine Mango And Kiwi 150 mm | PL4M,PL6M,PL8M

Supplier: Summit Machinery

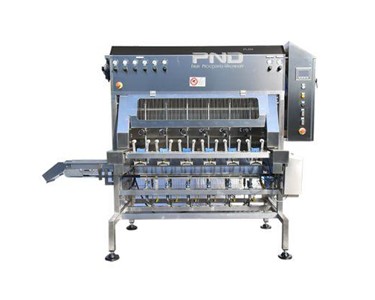

The PLM model peeling machines are dedicated to mango and kiwi peeling. They are machines entirely built in stainless steel and materials compliant with food standards.

Video for Peeling Machine Mango And Kiwi 150 mm | PL4M,PL6M,PL8M

Receive 1-3 days from order

PLMs can be configured with 4, 6 or 8 peeling heads depending on the customer's production capacity. The PLM machines are able to peel any diversity of fruit shape and size as they are equipped with a peeling system designed to obtain the maximum product yield. All the machines are electrically powered by speed-adjustable motors and by pneumatic systems which are also easily adjustable to obtain the maximum in terms of quality. The fruit is loaded into the machine manually by simply inserting the fruit into the appropriate slots. PLM machines are easy to maintain and sanitize; all consumable spare parts and all routine maintenance components are always available in a short time.

Relevant features:

Peeling ability on any type of fruit ripening;
Adjustable peel thickness;
Production speed regulation;
Variation of production speed and fruit rotation by inverter;
Adjustment of the peeling finish quality;
Simple and fast maintenance, sanitation and adjustment of the machine;
Electrical panel built according to EEC/IP 65 standards.

Technical features	PL8M	PL6M	PL4M
Production capacity	88-112 fruits/min	66-84 fruits/min	44-56 fruits/min
Fruit size (max)	130 mm diameter	130 mm diameter	130 mm diameter
Fruit height (max)	150 mm	150 mm	150 mm
Machine dimensions (width x length x height)	W2900xD1200xH1900 mm	W2400xD1200xH1850 mm	W2000xD1200xH1850 mm
Weight	1200 kg	900 kg	600 kg
Installed power	2.3 kW	2.3 kW	1.9 kW
Pneumatic air supply	3 bar	3 bar	3 bar
Air consumption	155 l/min	122 l/min	89 l/min
Water supply	3 bar	3 bar	3 bar
Water consumption	4 l/min	3 l/min	2 l/min
Employee operator	2	2	1

To contact Summit Machinery about Peeling Machine Mango And Kiwi 150 mm | PL4M,PL6M,PL8M use Get a quote.

Relevant features:

Peeling ability on any type of fruit ripening;
Adjustable peel thickness;
Production speed regulation;
Variation of production speed and fruit rotation by inverter;
Adjustment of the peeling finish quality;
Simple and fast maintenance, sanitation and adjustment of the machine;
Electrical panel built according to EEC/IP 65 standards.

Technical features	PL8M	PL6M	PL4M
Production capacity	88-112 fruits/min	66-84 fruits/min	44-56 fruits/min
Fruit size (max)	130 mm diameter	130 mm diameter	130 mm diameter
Fruit height (max)	150 mm	150 mm	150 mm
Machine dimensions (width x length x height)	W2900xD1200xH1900 mm	W2400xD1200xH1850 mm	W2000xD1200xH1850 mm
Weight	1200 kg	900 kg	600 kg
Installed power	2.3 kW	2.3 kW	1.9 kW
Pneumatic air supply	3 bar	3 bar	3 bar
Air consumption	155 l/min	122 l/min	89 l/min
Water supply	3 bar	3 bar	3 bar
Water consumption	4 l/min	3 l/min	2 l/min
Employee operator	2	2	1
