NRU-170-PPC Series

IP66 Waterproof 10.1” AI Panel PC Powered by NVIDIA® Jetson Orin™ NX/ Nano with 6x GMSL2 or 4x PoE+ GbE Ports

Backplane Systems Technology is pleased to present Neousys’s NRU-170-PPC Series. The Neousys NRU-170-PPC series is a rugged, waterproof 10.1” AI panel PC built to perform in harsh environments while delivering powerful AI capabilities. Powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano modules and bundled with NVIDIA JetPack SDK, it supports up to 100 TOPS of AI inference performance—making it ideal for edge applications such as precision farming, autonomous vehicles, AI inspection, and AMRs in outdoor and semi-outdoor environments.

Designed with an IP66-rated enclosure, the NRU-170-PPC offers full protection against dust and water ingress. Its high-brightness (1000 cd/m²) and high-contrast (1000:1) touchscreen ensures visibility in direct sunlight, while its single-finger touch capability even works in wet conditions. Fanless operation is maintained from -25°C to 60°C without performance throttling.

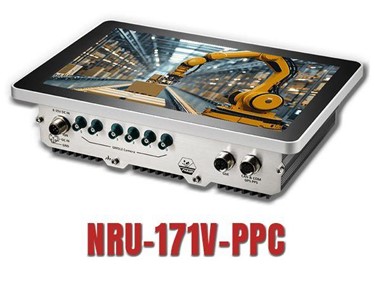

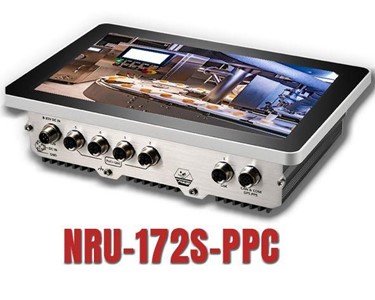

The NRU-171V-PPC model supports up to six GMSL2 automotive cameras via FAKRA Z connectors, ideal for ADAS and vision-intensive tasks. The NRU-172S-PPC features four PoE+ GbE ports with M12 X-coded connectors for industrial IP cameras. Additional interfaces include CAN FD, RS-232, mini-PCIe, and M.2 for wireless modules.

With wide-range 8–35V DC input and ignition control, the NRU-170-PPC series delivers a robust, cost-effective, all-in-one AI solution optimized for challenging industrial and mobile deployments.

Key Features:

Powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
10.1" touchscreen with 1920 x 1200 resolution, 1000 cd/m2 brightness, 1000:1 high contrast ratio
-25°C to 60°C fanless operation (No throttling at 60°C with MAXN TDP Mode)

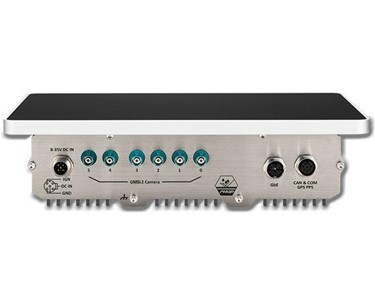

6x GMSL2 automotive cameras via FAKRA Z connectors (NRU-171V-PPC)

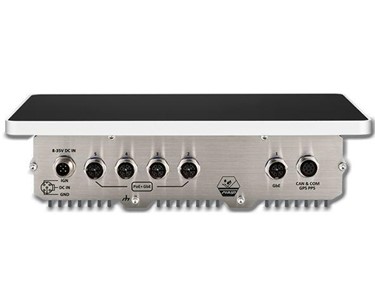

4x PoE+ GbE via M12 X-coded connectors (NRU-172S-PPC)
1x CAN FD and 1x RS232 via M12 A-coded connectors
8V to 35V wide-range DC input with built-in ignition power control

To contact Backplane Systems Technology about Neousys NRU-170-PPC Series use Get a quote.

With wide-range 8–35V DC input and ignition control, the NRU-170-PPC series delivers a robust, cost-effective, all-in-one AI solution optimized for challenging industrial and mobile deployments.

Key Features:

Powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
10.1" touchscreen with 1920 x 1200 resolution, 1000 cd/m2 brightness, 1000:1 high contrast ratio
-25°C to 60°C fanless operation (No throttling at 60°C with MAXN TDP Mode)
6x GMSL2 automotive cameras via FAKRA Z connectors (NRU-171V-PPC)
4x PoE+ GbE via M12 X-coded connectors (NRU-172S-PPC)
1x CAN FD and 1x RS232 via M12 A-coded connectors
8V to 35V wide-range DC input with built-in ignition power control
