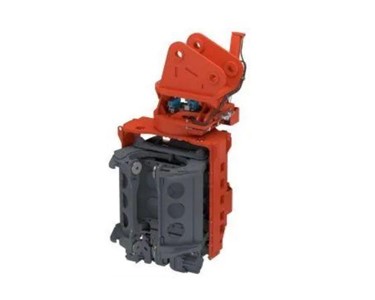

Movax - Pile Driver Attachment | Large | SG-60

Pile Driver Attachment | Large | SG-60

The Movax Side-Grip sheet piler is a unique hydraulically driven sheet piling system with an advance control system that enables the operator to work in various site conditions and limited spaces.

Receive 1-3 days from order

The Side Grip system makes sheet piling quicker, safer and also speeds up pile handling tasks, driving and extracting long piles while a standard excavator can be used as a carrier.

The Movax SideGrip Piledrivers attaches to the end of the dipper arm of an excavator and is able to be rotated both vertically and horizontally. The multi-rotational ability allows the Movax to pick a pile of a stack, self pitch it and then drive to the level required. With the unit fixed to the excavator arm enabling piles to be driven where access is awkward. The SG vibratory units are suited to a range of excavator sizes including long reach machines. Pile accuracy is monitored via the Movax Control Systems.

Specification	Unit	SG-60
Weight (excl adaptor)	Kg	2460-2691
Width	mm	1193
Depth	mm	1180-1463
Centrifugal force, max	Kn	600
Driving Method	–	Vibration
Eccentric moment	kgm	6.1
Engine power, min	kW	134
Frequency	l/min	2300-3000
Ground Vibration	–	Normal
Height	mm	2478
Pressure Setting	bar	350
Resonance-free Start/Stop	–	No
Return Pressure, max	bar	5
Swing Angle	°	+/- 360
Tilt Angle	°	+/- 30
Excavator Class	Ton	28-32

To contact DM Breaker Equipment about Movax Pile Driver Attachment | Large | SG-60 use Get a quote.
